Cash Acme 19084-0150 NCLX-LS 3/4-in 150PSI Replacement MPN

Product Description

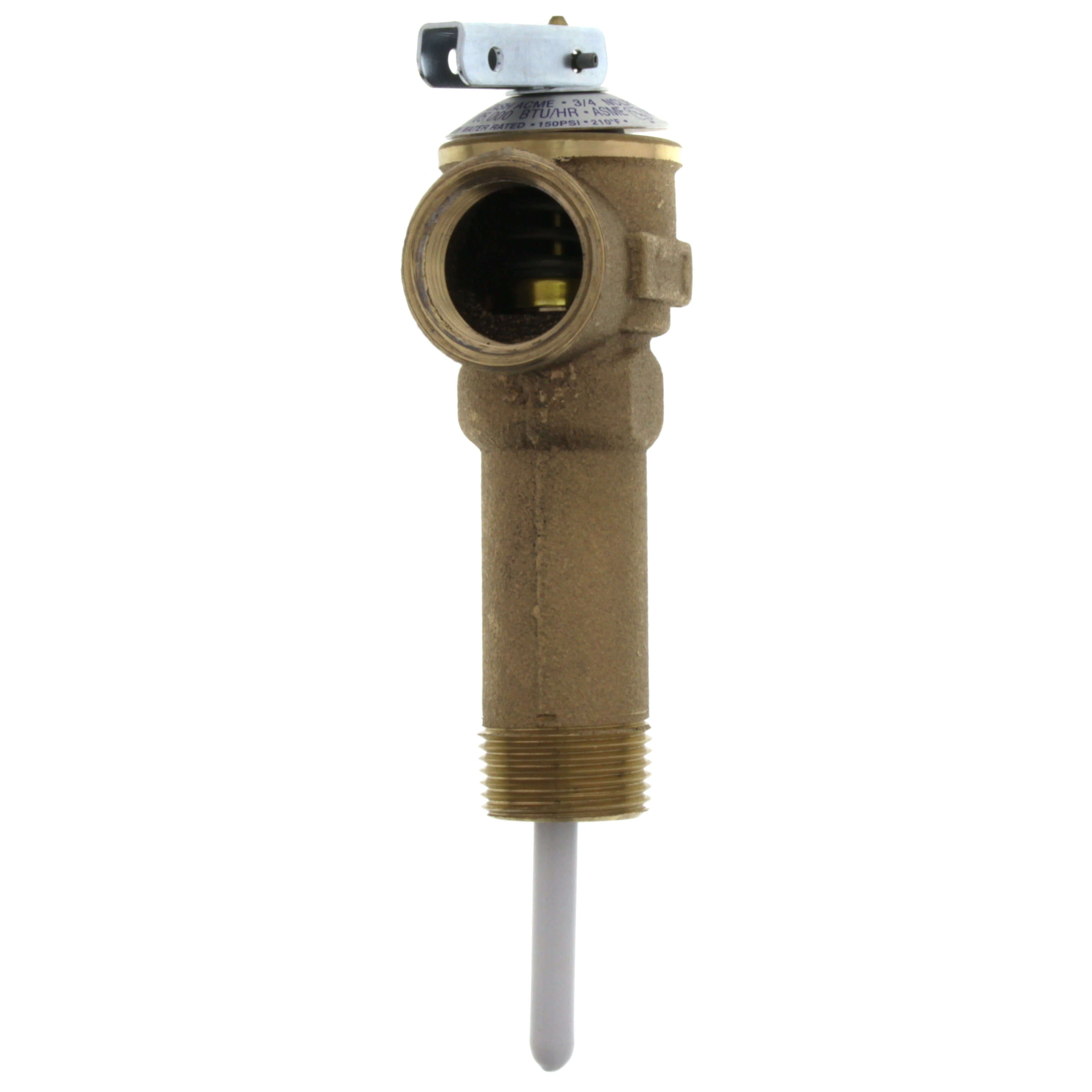

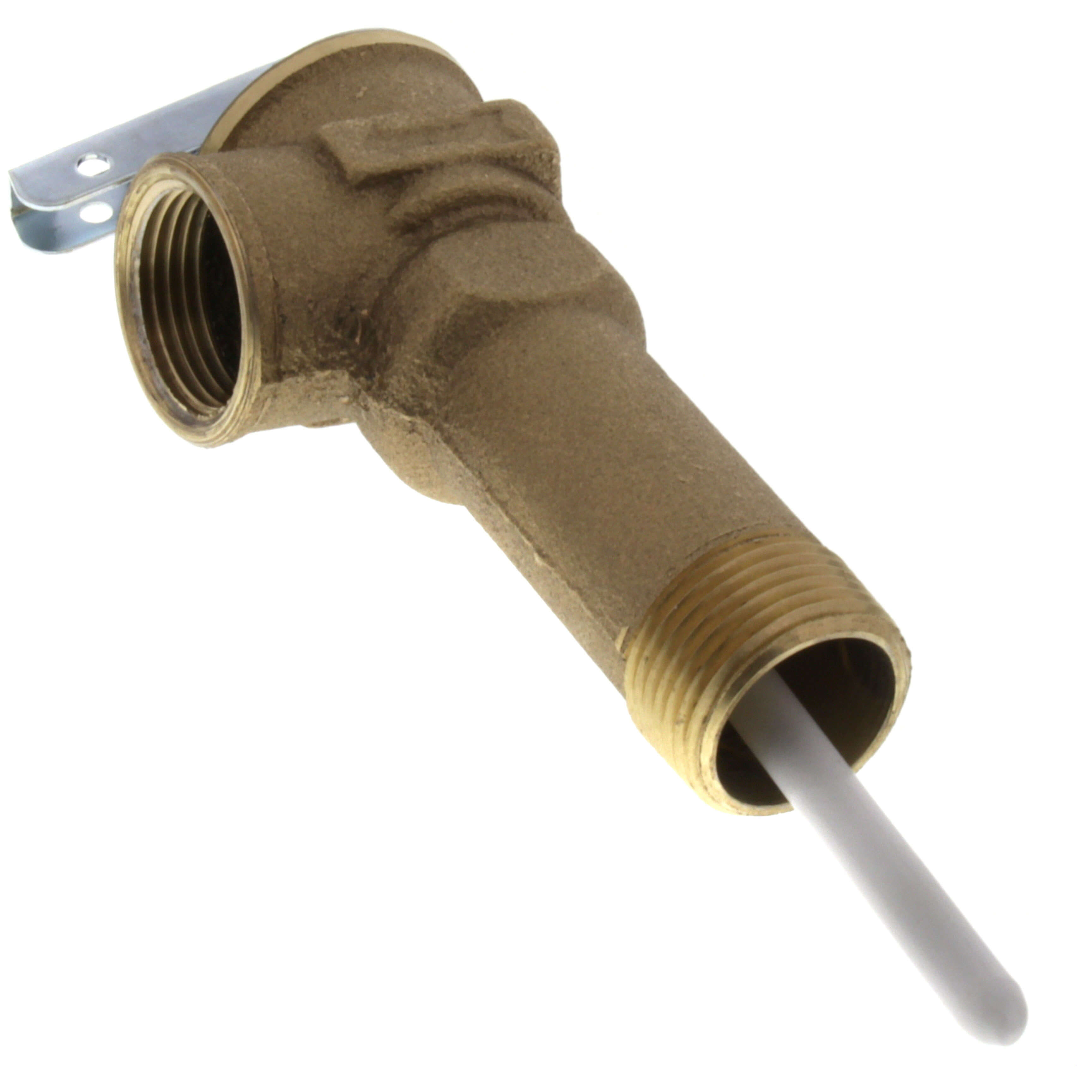

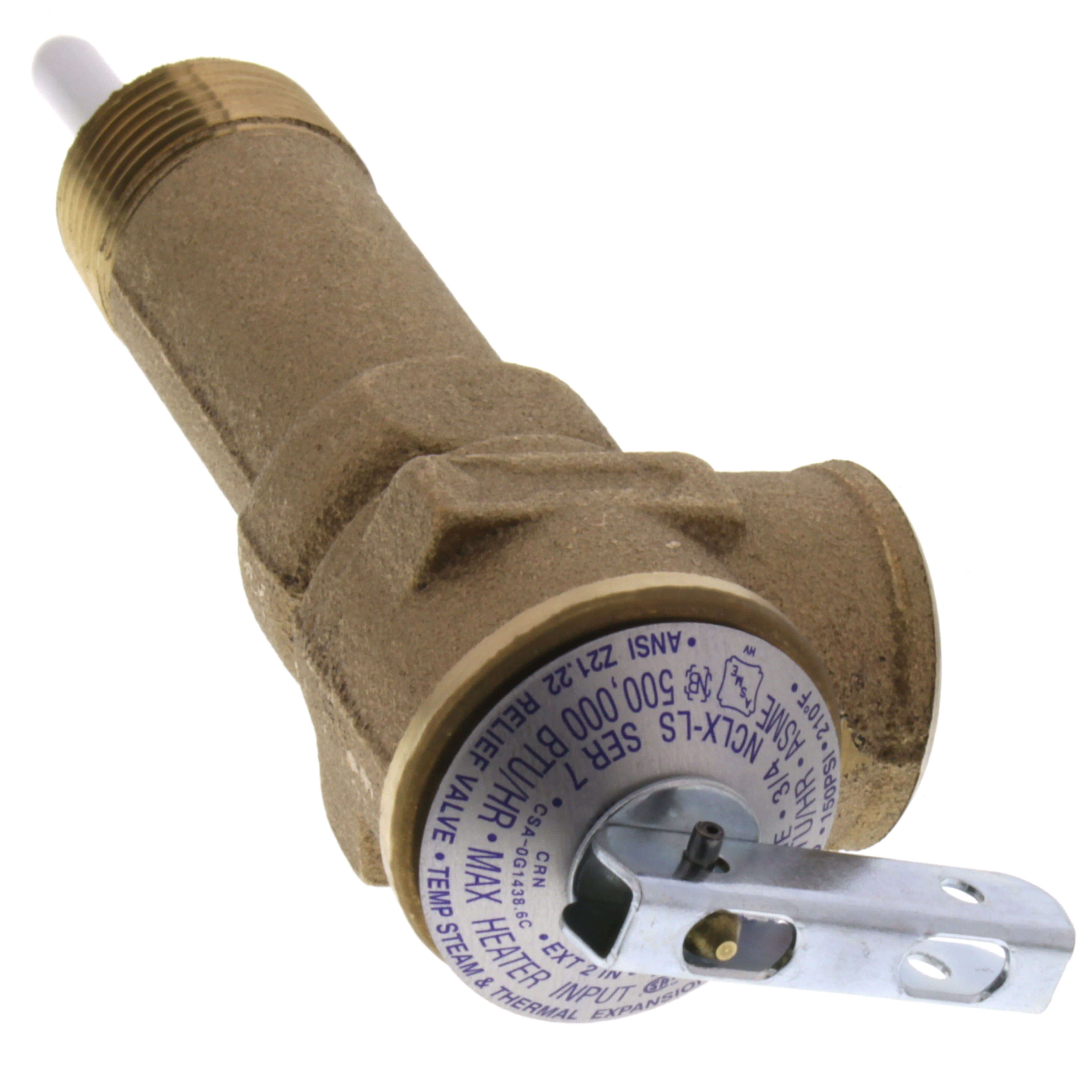

The Cash Acme NCLX-LS 3/4-in 150PSI is a reliable relief valve designed for use in domestic water heater applications. This valve features an effective isolation from mineral deposits due to its inert thermal element coating. The cast bronze body ensures durability while the brass and stainless steel internal parts contribute to its longevity.

• Temperature relief setting is 210°F (99°C).
• Test lever included for easy operation.
• Reseats automatically after relieving pressure or temperature.

Product Highlights

The NCLX-LS valve is ideal for protecting domestic water heaters and storage tanks from excess pressure and temperature. It is certified to ANSI Z21.22 / CSA 4.4 and complies with ASME Boiler Code Section IV.

Product Information

Standard Information

• Brand: Cash Acme
• MPN: 19084-0150

Technical Specifications

• Size: 3/4 inches
• Pressure Set Point: 150 psi
• Max Temperature: 210°F
• Inlet Type: MNPT
• Outlet Type: FNPT
• Connection Type: Threaded
• CSA Rating (BTU/HR): 105000
• ASME Rating (BTU/HR): 500000
