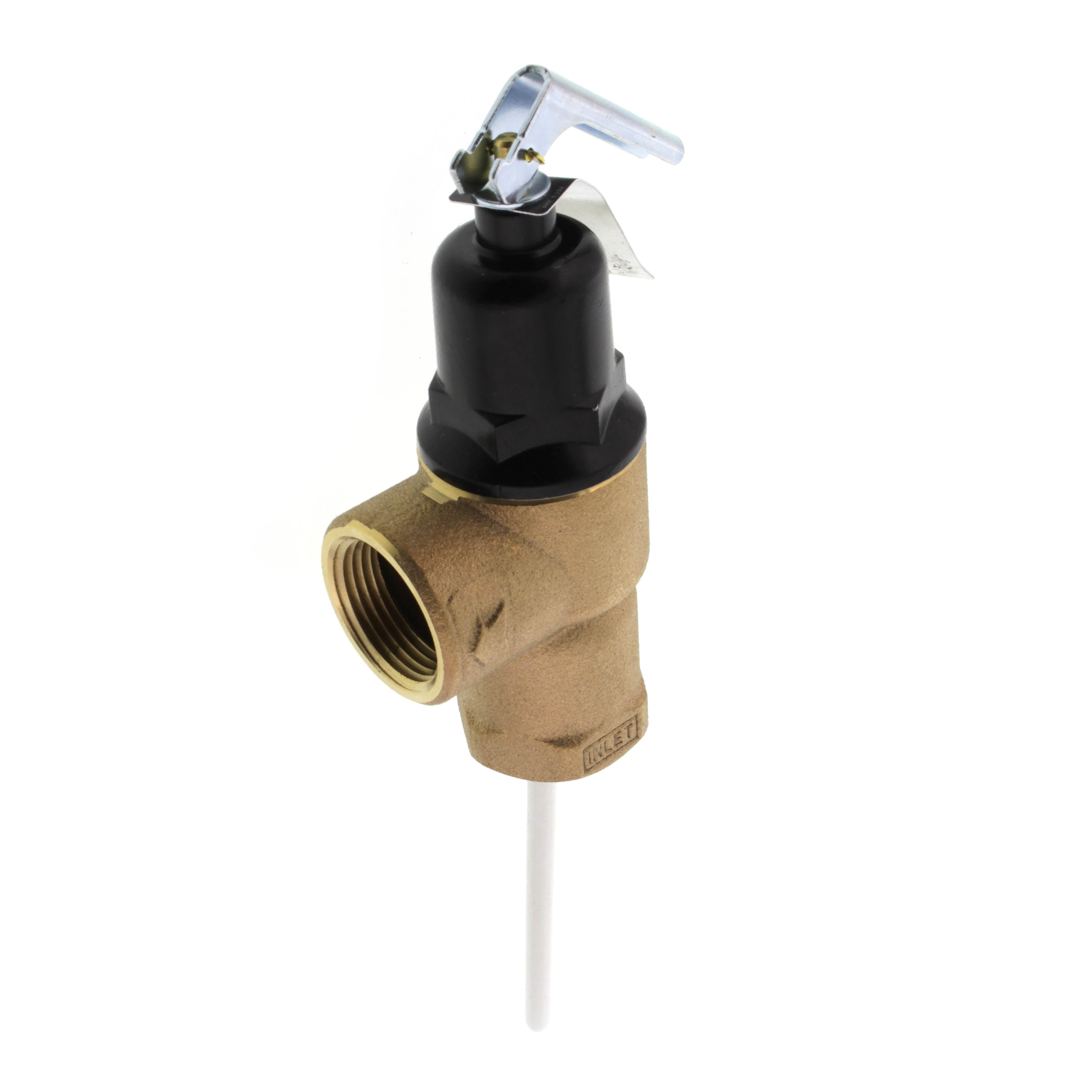

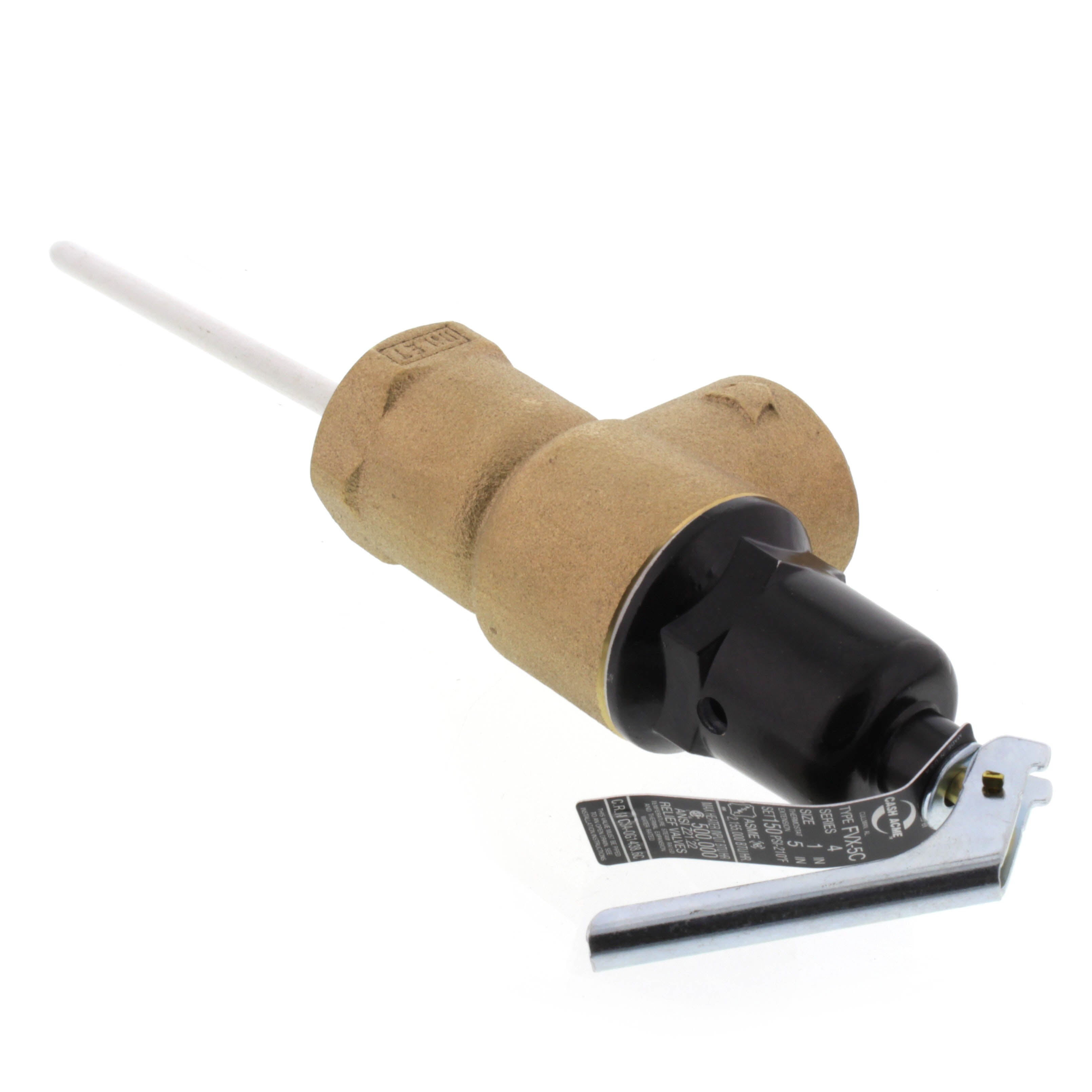

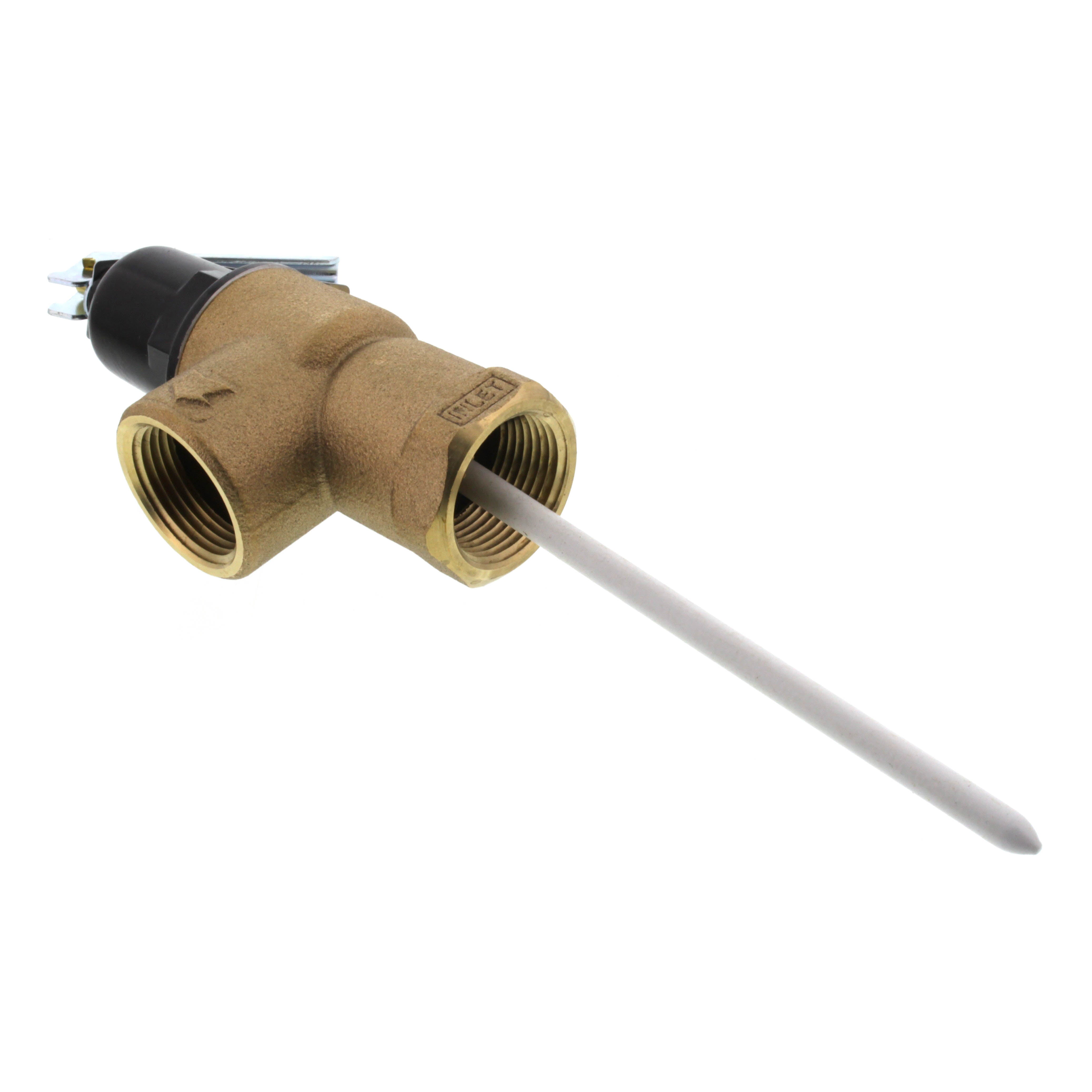

Cash-Acme 16937-0150 FVX-5C commercial T&P relief valve 1 inch angle 23931-0150

Product Description

The Cash-Acme 16937-0150 FVX-5C is a combination temperature and pressure relief valve designed for high capacity protection in domestic and commercial hot water heating devices. This fully automatic valve reseats after temperature or pressure relief, featuring a standard factory pressure relief setting of 150 psi. It has a 1 inch NPT female inlet connection and a temperature relief setting of 210 degrees Fahrenheit, with a CSA rating of 500,000 BTU/HR.

• Offers high capacity protection for domestic and commercial hot water heating devices.
• Completely automatic, valves reseat after temperature or pressure relief.
• Listed by CSA (ANSI Z21.22/CSA 4.4) and the National Board (ASME Boiler Code Section IV).

Product Highlights

High capacity temperature and pressure relief valve for hot water systems, featuring automatic reseating and CSA/ASME listings.

Product Information

Standard Information

• Brand: CASH-ACME
• Manufacturer Part Number: 16937-0150

Technical Specifications

• Brand: CASH-ACME
• MPN: 16937-0150
• Model: FVX-5C
• Valve Size: 1"
• Inlet Connection Type: FNPT
• Outlet Connection Type: FNPT
• Valve Connection: NPT
• Max Temperature: 210°F
• Pressure Range: 75 to 150 psi
• Pressure Set Point: 150 psi
• Thermostat Length: 5"
• CSA Rating: 500000 BTU/HR
• ASME Rating: 2155000 BTU/HR
• Piping Configuration: Angle
• Body Material: Brass
• Valve Application: Hot Water
• Lead Free: No
• Replaces MPN: 23931-0150
