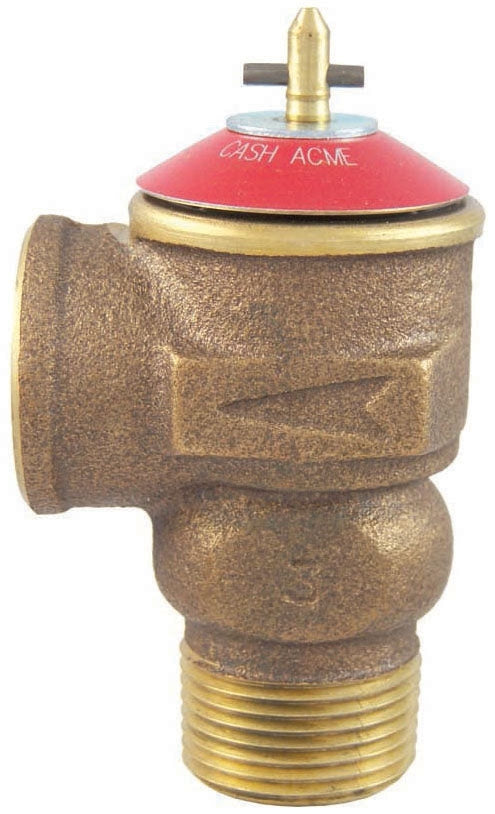

Cash Acme 14737-0150 3/4 x 3/4, MPT x FPT, 150 PSI, Bronze, Automatic Reseating, Pressure Relief Valve

Product Description

The Cash Acme 14737-0150 is a pressure relief valve designed for hot water systems. This valve is ideal for preventing over-pressure situations due to thermal expansion. It can be installed on the tank or in a tee configuration, either on the hot or cold side of the water heater.

• Pressure relief valve for hot water supply systems
• Automatic reseating after pressure relief
• Available for inlet and outlet sizes of three quarters of an inch

Product Highlights

This valve comes with a bronze body and internal components made from brass and stainless steel. It features a silicone seat disc and a stainless steel pressure spring, ensuring reliable performance and durability.

Product Information

Standard Information

• Manufacturer: Cash Acme
• UPC: 697285147379

Technical Specifications

• Type: Automatic Reseating
• Inlet Size: 3/4 Inch
• Outlet Size: 3/4 Inch
• End Connection: Male Threaded x Female Threaded
• Body Material: Bronze
• Disc Material: Silicone
• Spring Material: Stainless Steel
• Set Pressure Range: 150 PSI
• Pressure Rating: 150 PSI
• Application: Commercial and Domestic Hot Water Heating
• Applicable Standard: AGA, ASME, ANSI Z21.22/CSA 4.4, CSA
