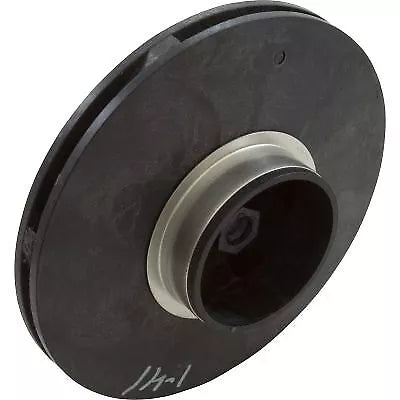

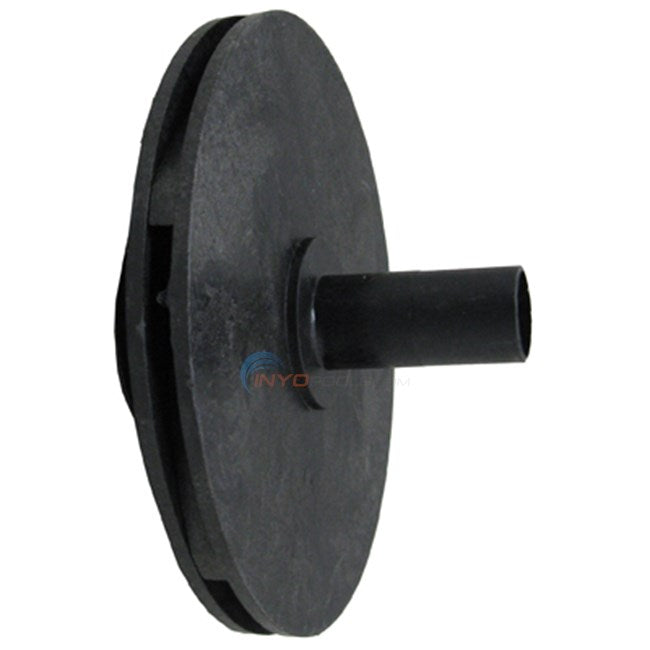

Carvin Pool Equipment 05038203R Impeller

Product Description

The Carvin Pool Equipment 05038203R is an efficient impeller designed for use with Jacuzzi Magnum pool pumps. This product fits a variety of pump models, including Magnum, Magnum Plus, Magnum Force, and Magnum Force 3. It operates with motors rated at 1.0 HP full rate and 1.5 HP up rate, ensuring reliable performance in pool care. Installation requires a C-face motor with a threaded shaft for secure fitting.

• Compatible with multiple Jacuzzi Magnum pump models.
• Requires a 1.0 HP or greater C-face motor with threaded shaft.
• Features six vanes for optimal water flow.

Product Highlights

The impeller's design enhances pool water circulation and efficiency while being durable for long-term use.

Product Information

Standard Information

• Brand: Carvin
• MPN: 05038203R

Technical Specifications

• Jacuzzi impeller diameter: 4-7/8 inches
• Intake diameter: 2 inches
• Number of vanes: 6
• Outside edge thickness: 7/16 inches
• Inside thickness: 3/16 inches
• Weight: 0.34 lbs
• Dimensions: 5.80 inches width, 3.00 inches height, 8.90 inches depth
• Warranty: 1 year from manufacturer
