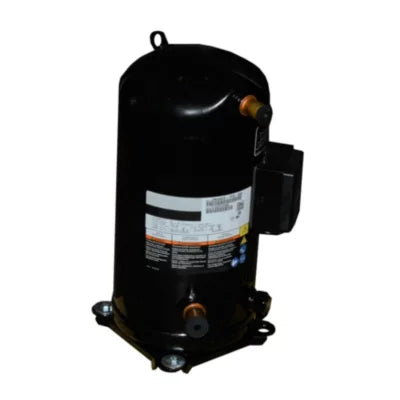

CARRIER ZR94KCE-TFD-950 Scroll Compressor - 94000 BTU, 460V 3-Phase

Product Description

The CARRIER ZR94KCE-TFD-950 is a hermetic scroll compressor with a BTU output of 94,000. This unit is designed for refrigeration applications and operates with multiple refrigerants including R-134a, R-22, and R-407C. It is suitable for power systems of 380/420/460 VAC at 50/60 Hz.

• Operates quietly with sound levels from 79 to 84 dBA.
• Features stub-type connections for easy installation.
• UL Recognized for safety and performance.

Product Highlights

This compressor is designed to resist liquid refrigerant slugging and debris, thus enhancing reliability and reducing maintenance needs.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• BTU Output: 94,000
• Displacement: 7.76 in³/Rev
• Length: 10.38 inches
• Width: 11.23 inches
• Height: 18.75 inches
• Weight: 126 pounds
• Amps: 16.4
• Voltage: 380/420/460 VAC
• Oil Charge Initial: 85 oz.
• Sound Level: 79-84 dBA
• Approvals: UL Recognized
