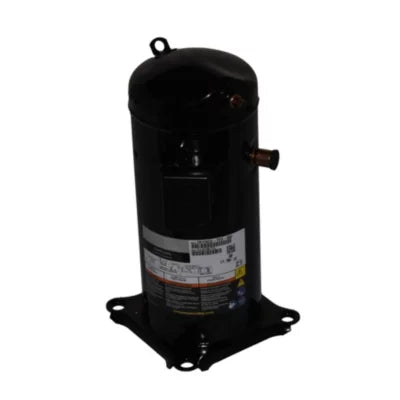

CARRIER ZR72KCE-TFD-950 Scroll Compressor 72000 BTUH

Product Description

The CARRIER ZR72KCE-TFD-950 is a dependable scroll compressor built for air conditioning and heat pump systems. This compressor is designed to operate with three-phase power systems at voltages of 380, 420, and 460 VAC. It supports common refrigerants such as R-22 and R-407C, making it suitable for a variety of applications.

• Scroll technology suited for A/C and heat pump usage.
• Compatible with 380/420/460 VAC power sources.
• Handles R-22 and R-407C refrigerants efficiently.

Product Highlights

This compressor provides a nominal cooling capacity of 72,000 to 73,500 BTUH, ensuring ample performance for residential and commercial cooling needs. Equipped with stub connections, it is designed to work with polyolester (POE) oil, enhancing its efficiency and reliability.

Product Information

Standard Information

• Brand: Carrier
• MPN: ZR72KCE-TFD-950

Technical Specifications

• Compressor Type: Scroll
• Application: A/C or Heat Pump
• Voltage: 380/420/460 VAC
• Phase: Three
• Cycle/Hertz: 50/60 Hz
• BTUH: 73,500
• Refrigerant: R-22 / R-407C
• Oil Type: Polyolester (POE)
• Discharge Line Size: 1/2 inch
• Suction Line Size: 7/8 inch
• Mounting Dimensions: 7.5 x 7.5 x 18 inches
• Weight: 88 lbs
• Length: 9.69 inches
• Width: 9.69 inches
• Height: 17.75 inches
• Amps: 7.1-9.1
• Locked Rotor Amps (LRA): 75
• Sound Level (dBA): 75-80
• Displacement: 5.98 in^3/Rev
• Condensing Temperature: 130°F
• Evaporating Temperature: 45°F
• Liquid Temperature: 115°F
• Return Gas Temperature: 65°F
• Initial Oil Charge: 60 oz.
• Suction Line Fitting Type: Stub
• Discharge Connection Type: Stub
