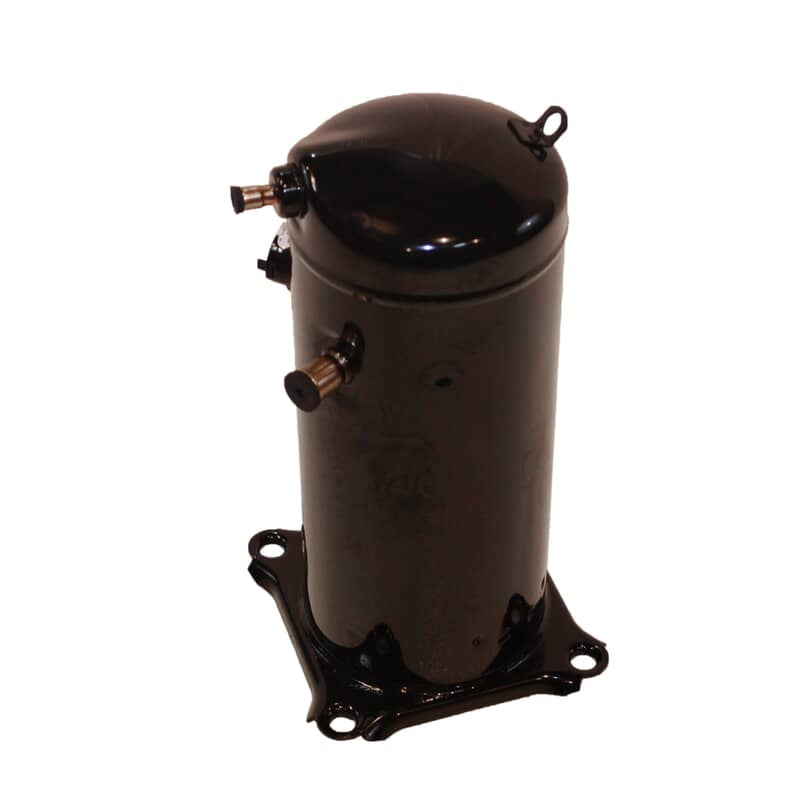

Carrier ZR61K3E-TFD-830 scroll compressor 61,000 460 volt 3P

Product Description

The CARRIER ZR61K3E-TFD-830 is a scroll compressor designed for HVAC and cooling applications. This 3-phase unit operates on 460 Volt power and is compatible with R22 refrigerant. It provides a cooling capacity of 61,000 BTU/hr, making it suitable for various industrial and commercial refrigeration needs. Its scroll design ensures efficient operation for air conditioning systems.

• Scroll compressor design
• Compatible with R22 refrigerant
• 61,000 BTU/hr cooling capacity

Product Highlights

Efficient scroll compressor for R22 systems, featuring 3-phase 460V operation and 61,000 BTU/hr capacity.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ZR61K3E-TFD-830
• Country of Origin: USA

Technical Specifications

• MPN: ZR61K3E-TFD-830
• Brand: CARRIER
• Refrigerant: R22
• Capacity: 61,000 BTU/hr
• Voltage: 460 Volt
• Phase: 3 Phase
• Compressor Type: Scroll
• Manufacturer: Carrier HVAC
• Parts Town Part Number: CRRZR61K3E-TFD-830
• Units: Each
• SKU: CS4231140
• Alternate Part Number: CAR-ZR61K3E-TFD-830
• Compressor Brand: Copeland
• Rated Load Amps (RLA): 9.1
• Approvals: UL Recognized
• Compressor Housing: Hermetic
• Condensing Temperature: 130°F (54.44°C)
• Country of Origin: USA
• Cubic Measurement: 0.6484
• Frequency: 50/60 Hz
• Discharge Connection Size OD: 1/2 inch
• Discharge Connection Type: Stub
• Displacement: 5.04 in^3/Rev
• Evaporating Temperature: 45°F (7.22°C)
• Liquid Temperature: 115°F (46.11°C)
• Locked Rotor Amps (LRA): 62
• Mass Flow: 910 lbs/hr; 955 lbs/hr
• Mounting Dimensions: 7.5 x 7.5 x 17.99 inches
• OPT Code: ZR61K3ETFD830
• Initial Oil Charge: 66 oz
• Oil Type: Polyolester (POE)
• Prop 65 Warning: No
• Protection: Yes
• Return Gas Temperature: 65°F (18.33°C)
• Sound Level: 74-79 dBA
• Suction Line Fitting Type: Stub
• Suction Line Size OD: 7/8 inch
