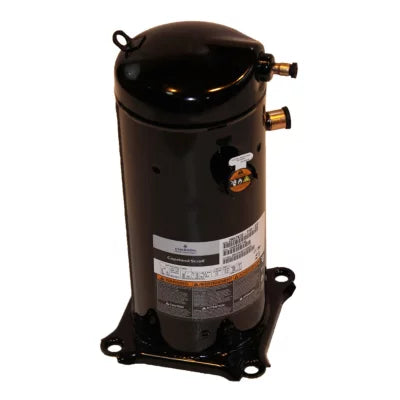

CARRIER ZR57K3E-TFD-830 Scroll Compressor 58,500 BTU (9.69 inches) ZR57K3ETFD830

Product Description

The CARRIER ZR57K3E-TFD-830 is a hermetic scroll compressor designed for R-22 and R-407C refrigerants. This compressor operates at voltages of 380, 420, or 460 VAC with a frequency of 50 or 60 Hz and provides a cooling capacity of 58,500 BTU. It has a suction line with a 7/8 inch outer diameter and a discharge connection of 1/2 inch, both are fitted as stub types. Produced in the USA, it uses Polyolester (POE) oil and is recognized by UL standards. Its compact design measures 9.69 inches in both length and width, with a height of 17.24 inches and a weight of eighty-five pounds. The compressor operates with lower vibration levels owing to its design, which includes only three moving parts and avoids complex internal valves.

• Features a displacement of 4.71 cubic inches per revolution.
• Operates at a sound level between 74 and 79 dBA.
• Suitable for evaporating temperatures of 45°F and condensing temperatures of 130°F.

Product Highlights

This compressor is ideal for HVAC applications where reliability and efficiency are required.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Hermetic Scroll

Technical Specifications

• Length: 9.69 inches
• Width: 9.69 inches
• Height: 17.24 inches
• Weight: 85 pounds
• Amps: 9.1
• BTU Output: 58,500
• Cycle/Hertz: 50/60 Hz
• Displacement: 4.71 cubic inches per revolution
• Refrigerant: R-22 / R-407C
• Sound Level: 74-79 dBA
• Oil Type: Polyolester (POE)
• Voltage: 380/420/460 VAC
