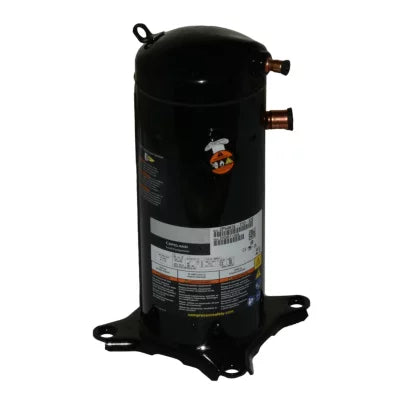

CARRIER ZR54K5E-TFD-830 Scroll Compressor - 54000 BTU, R410A, 460V 3-Phase

Product Description

The CARRIER ZR54K5E-TFD-830 is a hermetic scroll compressor for air conditioning and refrigeration tasks. It operates on R-410A refrigerant and is compatible with 380, 420, and 460 VAC, three-phase power at 50 or 60 Hz. It provides a BTU output of fifty-four thousand and features a displacement of three point twelve cubic inches per revolution.

• Efficient design minimizes maintenance.
• Low vibration reduces noise and wear.
• Resists liquid refrigerant slugging.

Product Highlights

This scroll compressor operates effectively within its range. It uses Polyolester (POE) oil with an initial charge of forty-two ounces. The unit maintains UL recognition for safety and compliance.

Product Information

Standard Information

• Brand: CARRIER
• Condition: New

Technical Specifications

• MPN: ZR54K5E-TFD-830
• BTU Output: 54,000
• Weight: 73.00 LBS
• Length: 9.56 inches
• Width: 9.56 inches
• Height: 16.94 inches
• Amps: 8.6
• Voltage: 380/420/460 VAC
• Refrigerant: R-410A
• Sound Level: 71-76 dBA
• Discharge Connection Size: 1/2 inches OD
• Suction Line Size: 7/8 inches OD
