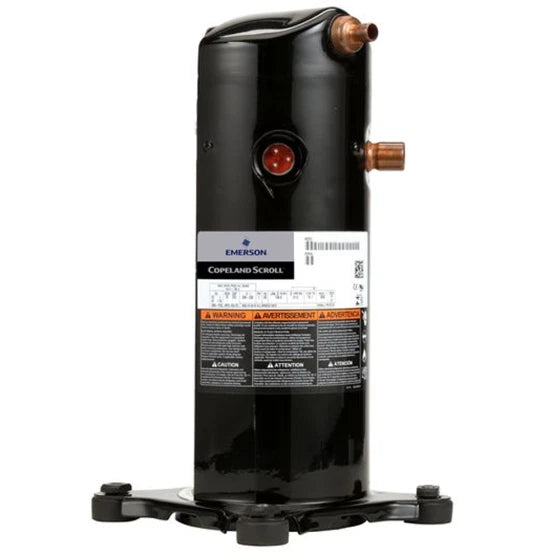

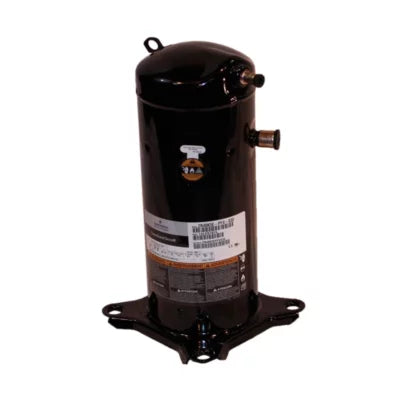

CARRIER ZR48K5E-TFE-830 Scroll Compressor

Product Description

The CARRIER ZR48K5E-TFE-830 is a scroll compressor for HVAC systems. It works with R-22 and R-407C refrigerants, providing a BTU output of 48,200. This hermetic compressor has a design that includes fewer moving parts, leading to less frequent maintenance.

• Compressor type: Scroll
• Voltage options: 208-230 VAC single phase, or 460 VAC three phase
• Low sound level rated at 70-75 dBA

Product Highlights

This compressor is ideal for residential and commercial HVAC applications where reliable cooling is needed.

Product Information

Standard Information

• Brand: CARRIER
• MPN: ZR48K5E-TFE-830

Technical Specifications

• Compressor Type: Scroll
• Compressor Housing: Hermetic
• BTU Output: 48,200
• Voltage: 208-230 VAC
• Phase: Single
• Refrigerant Compatibility: R-407C
• Amps: 24.3
• Locked Rotor Amps (LRA): 137
• Rated Load Amps (RLA): 24.3
• Displacement: 3.87 in³/Rev
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 42 oz.
• Suction Line Size (OD): 7/8 inches
• Discharge Connection Size (OD): 1/2 inches
• Suction Line Fitting Type: Stub
• Discharge Connection Type: Stub
• Mounting Dimensions: 7.5 inches X 7.5 inches
• Sound Level (dBA): 70-75
• Approvals: UL Recognized
• Condensing Temperature: 130 °F (54.44 °C)
• Evaporating Temperature: 45 °F (7.22 °C)
• Liquid Temperature: 115 °F (46.11 °C)
• Return Gas Temperature: 65 °F (18.33 °C)
• Cycle/Hertz: 50/60 Hz
• Mass Flow: 671 lbs/hr; 762 lbs/hr
• Product Family: ZR
• Country of Origin: USA
