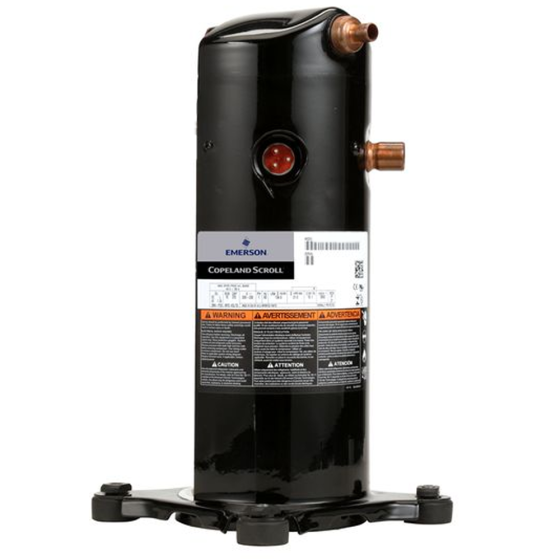

CARRIER ZR48K5E-TFD-830 Scroll Compressor 48000 BTU R22 460V 3-Phase

Product Description

The CARRIER ZR48K5E-TFD-830 is a scroll compressor suitable for R22 refrigerant applications. It operates efficiently at 460 volts and is designed for three-phase power systems.

• Rated at 48,000 BTU for cooling capacity.
• Includes a suction line connection size of seven-eighths inches and a discharge line size of one-half inches.
• Compatible with POE oil for lubricating the compressor.

Product Highlights

This compressor provides reliable performance for HVAC systems, ensuring optimal cooling.

Product Information

Standard Information

• Brand: CARRIER
• MPN: ZR48K5E-TFD-830

Technical Specifications

• Hertz: 60
• Phase: 3
• RLA: 7.9
• Voltage: 460V
• Refrigerant: R22
• Compressor Type: Scroll
• BTU Rating: 48000
• Suction Line Height: 11.1 inches
• Discharge Line Height: 15.4 inches
• Discharge Line Size: 1/2 inches
• Oil: POE (Polyester)
• Operating Weight: 64.75 lbs
• Exterior Dimensions (D): 7.7 inches
• Exterior Dimensions (W): 7.4 inches
• Exterior Dimensions (H): 16.2 inches
• Shipping Weight: 95 lbs
• Capacity: 48200 BTU
