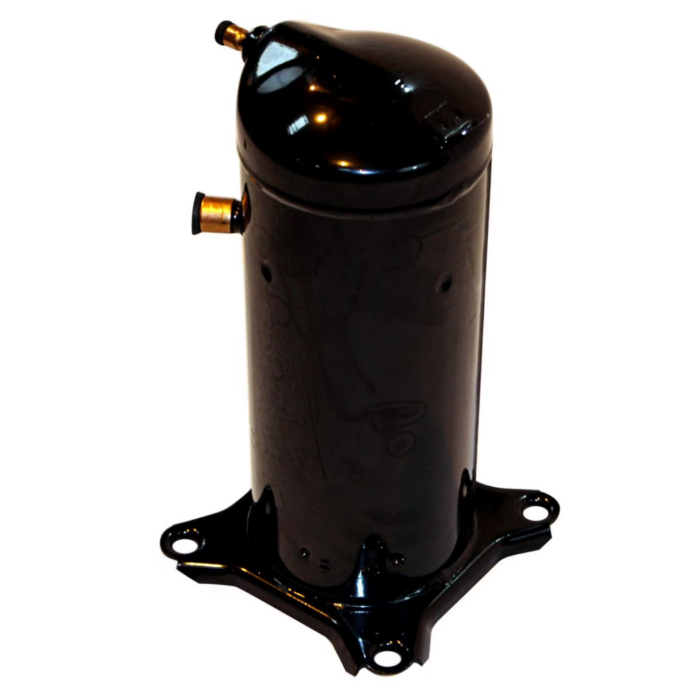

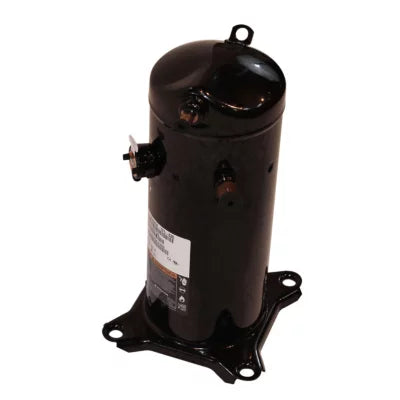

CARRIER ZR44K5E-TF5-830 Scroll Compressor 44,000 BTU R-407C

Product Description

The CARRIER ZR44K5E-TF5-830 is a scroll compressor specifically designed for R-407C refrigerant systems. This unit operates efficiently on a 200/230 VAC, three-phase power supply, at a frequency of 50/60 Hz. With a cooling capacity of 44,000 BTU and a displacement of 3.56 cubic inches per revolution, it is suitable for various commercial applications.

• Hermetic compressor housing for durability.
• Equipped with size 7/8 inch suction and 1/2 inch discharge line fittings.
• Initial oil charge of Polyolester (POE) oil is 42 ounces.

Product Highlights

This compressor operates with an evaporating temperature of forty-five degrees Fahrenheit and a condensing temperature of one hundred thirty degrees Fahrenheit. Its UL recognition ensures compliance with safety standards.

Product Information

Standard Information

• Brand: CARRIER
• MPN: ZR44K5E-TF5-830

Technical Specifications

• Compressor Type: Scroll
• Refrigerant: R-407C
• Voltage: 200/230 VAC
• Phase: Three
• Cycle/Hertz: 50/60 Hz
• Displacement: 3.56 in³/Rev
• Suction Line Size (OD): 7/8 in
• Discharge Connection Size (OD): 1/2 in
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 42 oz
• Weight: 63.8 lbs
• Dimensions: 9.69 in x 9.69 in x 16.94 in
• Sound Level: 73-78 dBA
• Approvals: UL Recognized
