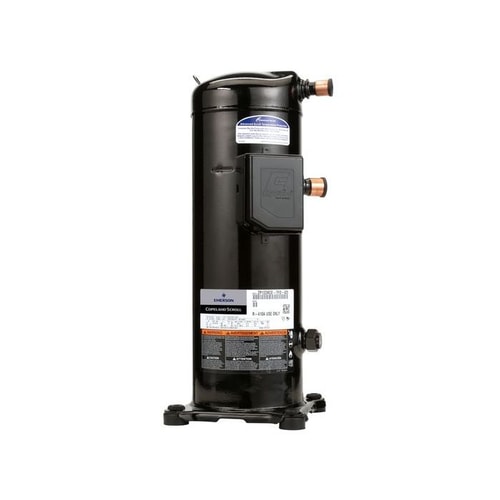

CARRIER ZR108KCE-TFD-950 Hermetic Scroll Compressor 106,000 BTU

Product Description

The CARRIER ZR108KCE-TFD-950 is a hermetic scroll compressor suitable for various HVAC applications. It is compatible with chlorine-free refrigerants such as R-134a, R-22, and R-407C. This compressor operates on three-phase power at voltage ratings of 380, 420, or 460 VAC and delivers a cooling capacity of 106,000 BTU.

• Designed for use with chlorine-free refrigerants
• Features a hermetic housing and scroll compressor type
• Operates at 380/420/460 VAC, 50/60 Hz

Product Highlights

This compressor is built for efficiency and reliability, making it ideal for HVAC systems that require quiet operation and effective cooling. It has an initial oil charge of 110 ounces of Polyolester (POE) oil, ensuring optimum performance. The unit can handle liquid refrigerants effectively and has reduced noise levels for comfort.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Hermetic Scroll

Technical Specifications

• Weight: 132 lbs
• Amps: 12.7-14
• BTU Output: 106,000
• Height: 21 inches
• Length: 10.38 inches
• Width: 11.23 inches
• Voltage: 380/420/460 VAC
• Noise Level: 80-85 dBA
• Discharge Connection Size: 7/8 inches OD
• Suction Line Size: 1 3/8 inches OD
