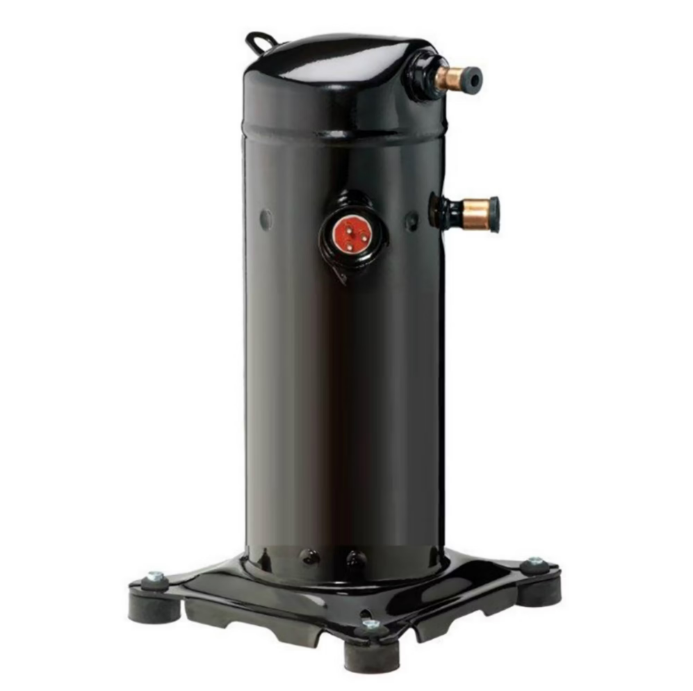

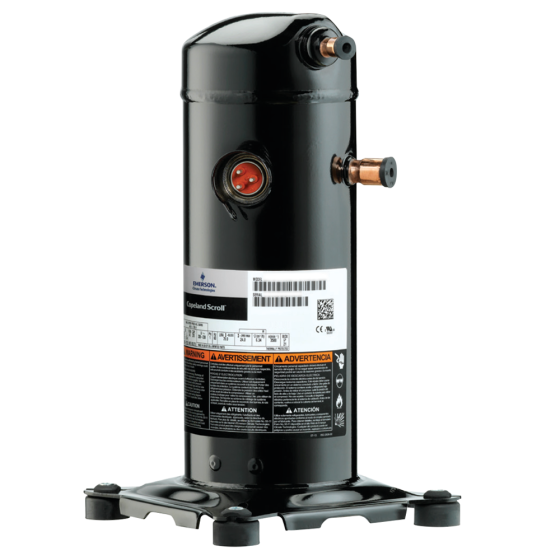

CARRIER ZPS60K5E-TF5-830 Hermetic Scroll Compressor

Product Description

The CARRIER ZPS60K5E-TF5-830 is a hermetic scroll compressor suitable for air conditioning applications. This model operates on 208/230Vac three-phase power at sixty hertz. It utilizes R410A refrigerant and POE oil for cooling efficiency. The compressor supports a suction line size of seven-eighths inches and a discharge line size of one-half inch.

• Utilizes R410A refrigerant for enhanced cooling efficiency.
• Operates on 208/230Vac power at 60Hz.
• Features a scroll type compressor with a rated capacity of 61000 BTU/hr.

Product Highlights

This compressor is designed with thermal protection for enhanced safety. It operates efficiently at average sound levels of seventy-two decibels. Its compact design allows for easy installation in various air conditioning systems.

Product Information

Standard Information

• Brand: CARRIER
• MPN: ZPS60K5E-TF5-830

Technical Specifications

• Capacity (BTU/hr): 61000
• Operating Voltage: 208/230Vac
• Power Consumption: 5660 Watts
• Current Draw: 16.05 Amps
• Sound Level: 72 dBA
• Dimensions (Inches): 9.56 x 9.56 x 17.35
• Weight: 75.6 lbs
• Refrigerant: R410A
