COPELAND Copeland ZPD182KCE-TED-950 Aftermarket Hermetic Scroll Compressor 182000 BTU (460/3/60) ZPD182KCETED950
COPELAND Copeland ZPD182KCE-TED-950 Aftermarket Hermetic Scroll Compressor 182000 BTU (460/3/60) ZPD182KCETED950

Copeland ZPD182KCE-TED-950 Aftermarket Hermetic Scroll Compressor 182000 BTU (460/3/60) ZPD182KCETED950

COPELAND
Brand: COPELAND
SKU: ZPD182KCE-TED-950
Availability: In Stock

Ships via freight in 1-3 business days
$6,226.96
$6,226.96
LTL Delivery

This product weighs 160 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

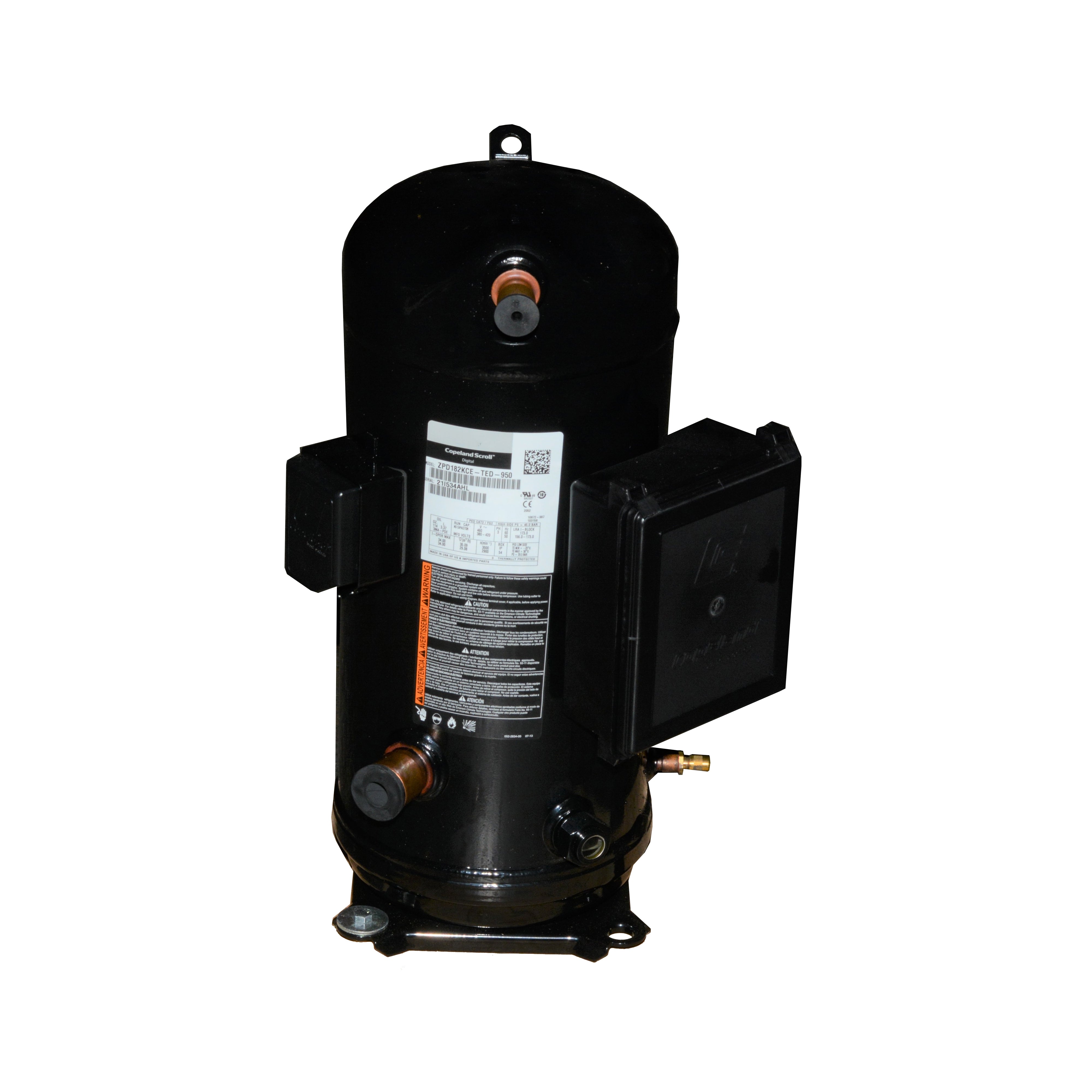

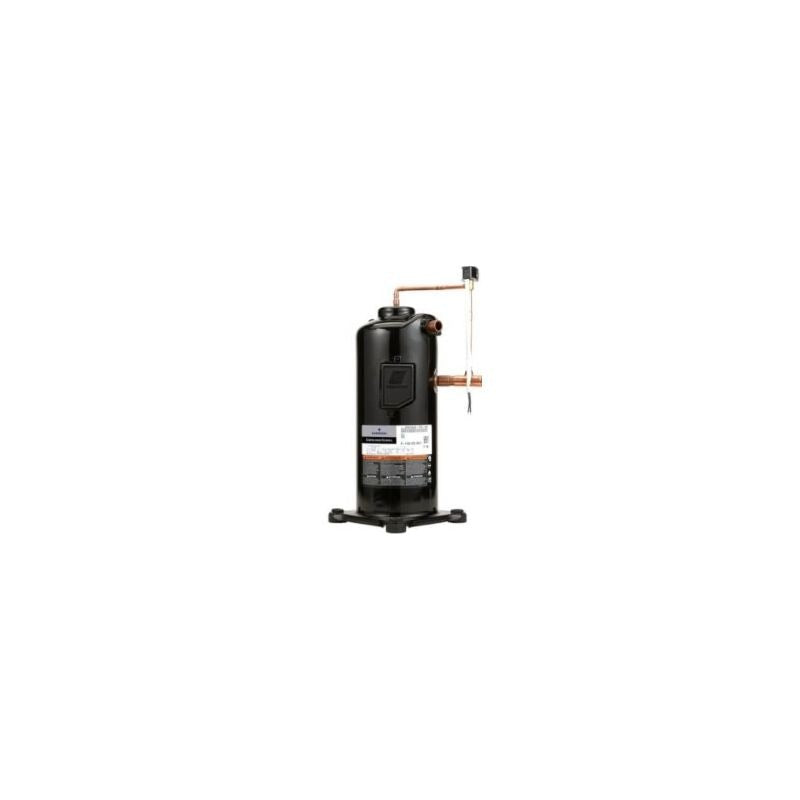

Copeland ZPD182KCE-TED-950 is a hermetic Copeland scroll compressor rated at 182000 BTU for R-410A systems, configured for three-phase 460V operation. The unit uses scroll technology with POE (polyolester) oil and external enhanced protection for HVACR applications. Electrical characteristics include a rated load amp of about 26.9 A, locked rotor amp of 173 A, and a minimum circuit ampacity of 30 A.

  • Scroll compressor design with fewer moving parts and improved liquid handling
  • POE (polyolester) oil charge; compatible with R-410A refrigerant
  • Electrical ratings: RLA 26.9 A, LRA 173 A, MCA 30 A; input voltage up to 460 VAC

Product Highlights

Hermetic three-phase scroll compressor, 182000 BTU for R-410A systems, POE oil, 380-420/460 VAC, external enhanced protection

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZPD182KCE-TED-950
Technical Specifications
Brand
Copeland
MPN
ZPD182KCE-TED-950
Compressor Type
Scroll
Compressor Housing
Hermetic
Phase
Three
Input Voltage
380-420/460 VAC
Frequency
50/60 Hz
Rated Capacity
182000 BTU
Refrigerant
R-410A
Oil Type
POE (Polyolester)
Motor Type
General 3 Lead Single Voltage
Protection
External Enhanced
Rated Load Amps (RLA)
26.9 A
Amps (operating range)
24.7-26.8 A
Locked Rotor Amps (LRA)
173 A
Minimum Circuit Ampacity (MCA)
30 A
MCC Amps
42 A
Displacement (in^3/rev)
10.20
Displacement (ft^3/hr)
1239.34
RPM
3500
Sound Level
82-87 dBA
Mass Flow (lbs/hr)
2270 lbs./hr.; 2690 lbs./hr.
Suction Line Size (OD)
1 3/8"
Discharge Connection Type
Stub
Return Gas Temperature
65°F (18.33°C)
Evaporating Temperature
45°F (7.22°C)
Mounting Dimensions
7.50" x 7.50" x 23.02"
Dimensions (L x W x H)
12.94" x 11.73" x 22.21"
UL Listed
Yes
Ratings
ASRAE ARI
OPT Code
ZPD182KCETED950
Item / SKU
ZPD182KCETED950 / 278073
