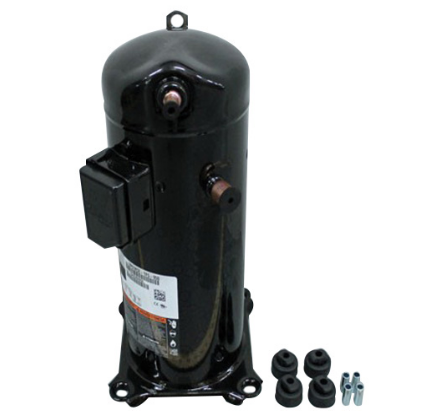

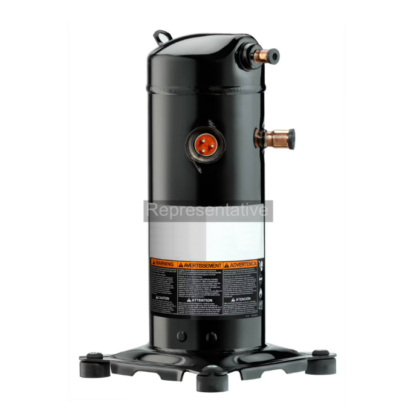

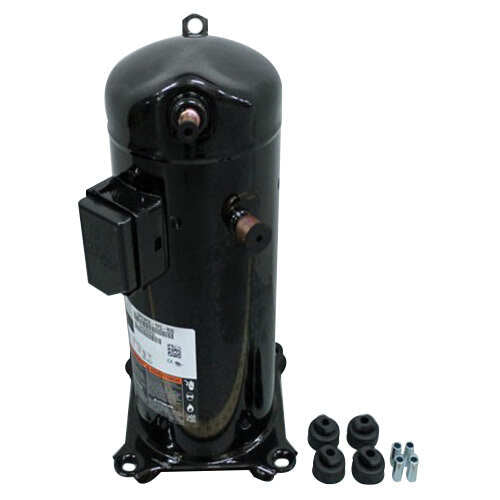

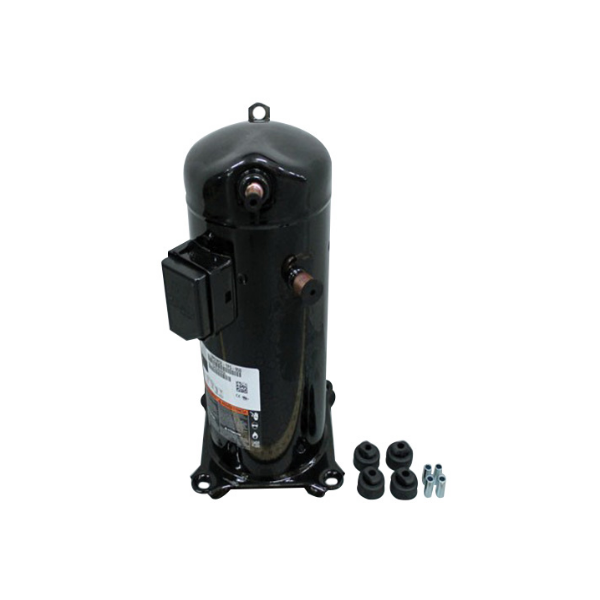

CARRIER ZP76KCE-TF5-950 Scroll Compressor

Product Description

The CARRIER ZP76KCE-TF5-950 is a scroll compressor ideal for air conditioning and refrigeration use. This compressor operates with R410A refrigerant and provides a cooling capacity of seventy-seven thousand BTU. It uses 208/230V power. It fits various HVAC systems, including packaged systems, rooftop units, and standalone units.

• Scroll compressor technology.
• Refrigerant type: R410A.
• Operating Voltage: 208/230V.

Product Highlights

CARRIER’s scroll compressors are engineered for efficient performance in both residential and commercial settings.

Product Information

Standard Information

• Brand: CARRIER
• MPN: ZP76KCE-TF5-950

Technical Specifications

• Refrigerant Type: R-410A
• Cooling Capacity: 77000 BTU
• Voltage Rating: 208/230V
• Phase: Three Phase
• Compressor Type: Scroll
• Product Type: Packaged Unit/RTU, Central Air Conditioner
• Amperage Rating: 20.8 A
• Sound Level: 75 dBA
• Dimensions: 9.69 inches L x 9.69 inches W x 17.91 inches H
• Mounting Type: 7.5 inches L x 7.5 inches W x 18.16 inches H
• Power Rating: 7060 W
• Weight: 101 lbs
• Tonnage: 6.5 Ton
• Liquid Line (OD): 1/2 in
• Suction Line (OD): 7/8 in
