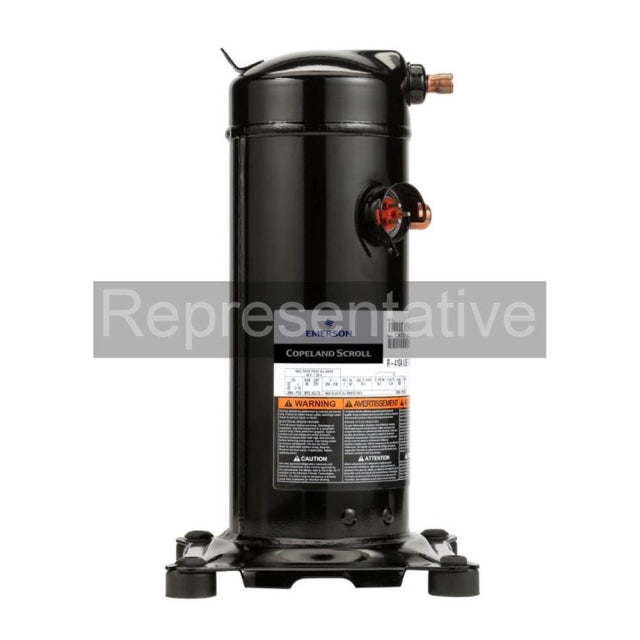

CARRIER ZP61KCE-TFD-830 Copeland Scroll Compressor 61000 BTU/Hour

Product Description

The CARRIER ZP61KCE-TFD-830 is a Copeland scroll compressor intended for high-temperature air conditioning systems. It uses R-410A refrigerant and can operate on 460V 60Hz 3-Phase or from 380 to 240 Volt 50 Hertz. The compressor's nominal cooling capacity is 61000 BTU/hour with an energy efficiency ratio of 10.8 EER.

• Nominal capacity of 61000 BTU/hour for air conditioning use.
• Fewer moving parts, leading to lower maintenance needs.
• Compatibility with 460V or 380 to 240 Volt power sources.

Product Highlights

This compressor is designed for durable operation with features that reduce noise and enhance performance. Its high efficiency and robust design make it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• Refrigerant Type: R-410A

Technical Specifications

• Nominal HP: 5.1
• Cooling Efficiency: 10.8 EER
• Capacity (Btu/h): 61000
• Input Power (W): 4750
• Dimensions: Height 17.91 inches, Length 9.69 inches, Width 9.69 inches
• Shipping Weight: 92 lb
• Sound Pressure @1m (dBA): 60.0
• Connection Size: 7/8 inch ODF soldered (suction), 1/2 inch ODF soldered (discharge)
