CARRIER ZP51K5E-TFE-830 Scroll Compressor

Product Description

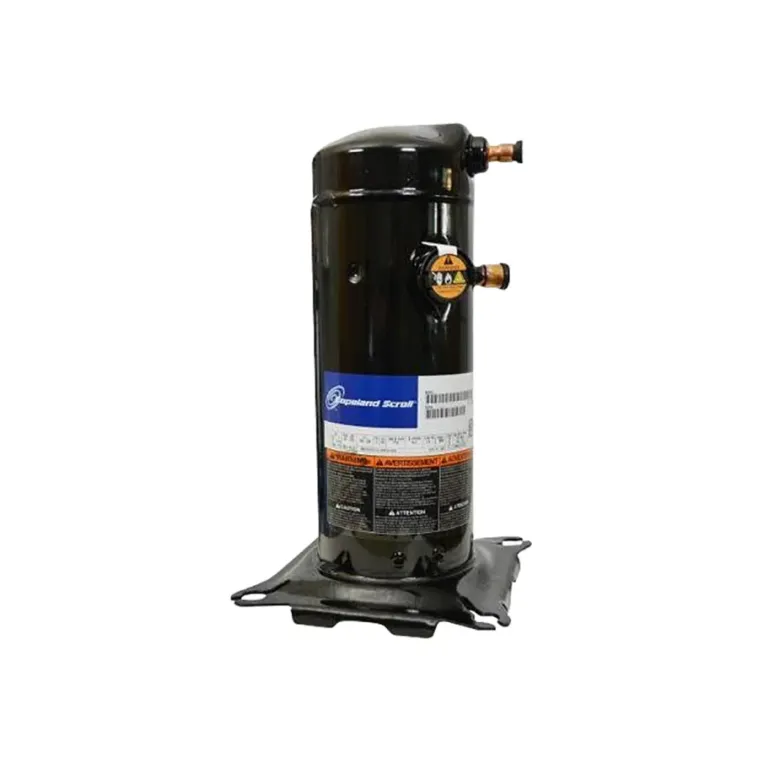

The CARRIER ZP51K5E-TFE-830 is a hermetic scroll compressor specifically made for air conditioning and heat pump systems. It works with R-410A refrigerant and delivers a BTU output of fifty-one thousand. This compressor functions on three-phase power at two hundred and eight or two hundred thirty VAC and five hundred seventy-five VAC.

• Compatible with R-410A refrigerant
• Features built-in motor protection
• Low noise and vibration operation

Product Highlights

This compressor is engineered for efficiency and durability in demanding conditions.

Product Information

Standard Information

• Brand: CARRIER
• Refrigerant: R-410A

Technical Specifications

• Compressor Type: Scroll
• Voltage: 208/230, 575 VAC
• Phase: Three
• BTU Output: 51,000
• Cycles/Hertz: 50/60 Hz
• Amps: 17.8
• Weight: 71.7 lb
• Height: 16.47 in
• Length: 9.69 in
• Width: 9.69 in
• Mounting Dimensions: 7.5 x 7.5 x 17.17 in
• Suction Line Size (OD): 7/8 in
• Discharge Connection Size OD: 1/2 in
• Oil Type: Polyolester (POE)
• Locked Rotor Amps (LRA): 110
• Rated Load Amps (RLA): 16
• Displacement: 2.94 in^3/Rev
• Sound Level (dBA): 71-76
• Approvals: UL Recognized
• Evaporating Temperature: 50 F
• Return Gas Temperature: 65 F
• Condensing Temperature: 130 F
• Liquid Temperature: 115 F
• Mass Flow (lbs/hr): 764 lbs/hr
