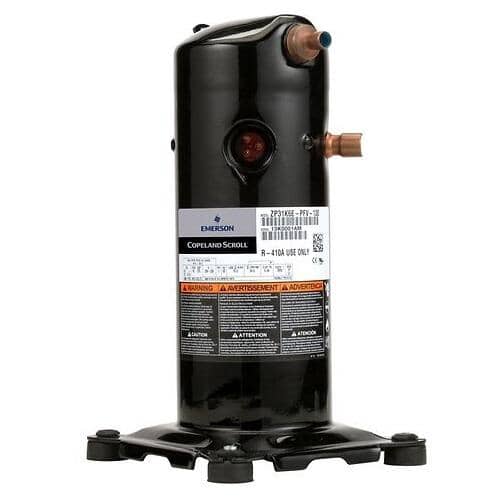

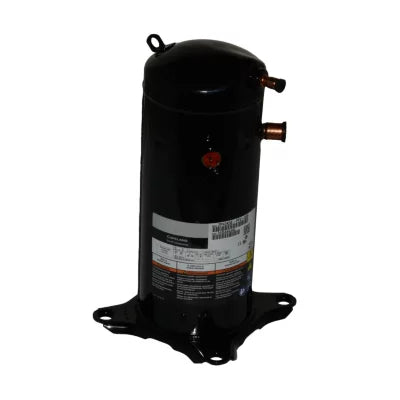

CARRIER ZP42K5E-PFV-830 Copeland Scroll Compressor

Product Description

The CARRIER ZP42K5E-PFV-830 is a Copeland scroll compressor specifically made for R-410A refrigerant systems. This compressor has a hermetic housing and is designed for single-phase operation at a voltage of 208-230 VAC and a frequency of 50/60 Hz. It provides an output of 42,000 BTU and features a displacement of 2.43. Its rated load is 24.3 amps with a locked rotor amperage of 117.

• Includes a 1/2 OD discharge connection and a 7/8 OD suction line.
• Uses Polyolester (POE) oil with an initial charge of 42 oz.
• Meets UL recognition standards.

Product Highlights

This compressor operates at a sound level of 68 dBA and is suitable for applications with an evaporating temperature of 45°F and a condensing temperature of 130°F. It effectively minimizes the impact of liquid refrigerant slugging and debris.

Product Information

Standard Information

• Brand: Copeland
• Compressor Housing: Hermetic

Technical Specifications

• Length: 9.56 inches
• Width: 9.56 inches
• Height: 16.94 inches
• Weight: 72.9 pounds
• BTU Output: 42,000
• Rated Load Amps (RLA): 24.3
• Locked Rotor Amps (LRA): 117
• Refrigerant: R-410A
