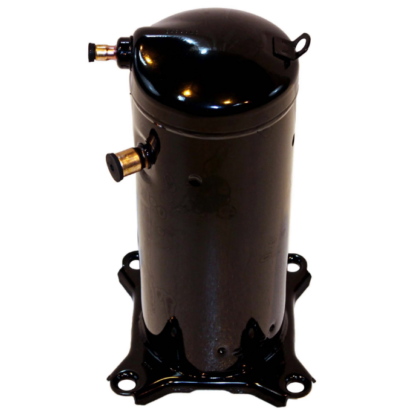

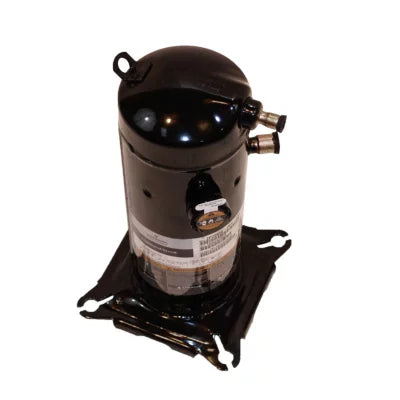

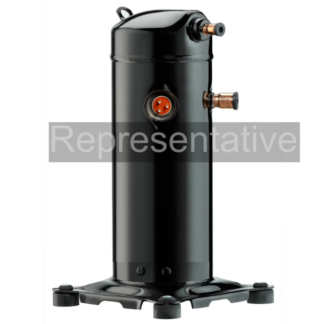

CARRIER ZP29K5E-PFV-830 Copeland Scroll Compressor - 29000 BTU - R410A - 208-230V

Product Description

The CARRIER ZP29K5E-PFV-830 is a hermetic Copeland scroll compressor designed for R-410A refrigerant. It has a cooling output rated at twenty-nine thousand BTU and operates effectively at two hundred eight to two hundred thirty volts on a single-phase power supply.

• Efficiently handles liquid refrigerant slugging.
• Designed with fewer moving parts for low maintenance.
• UL Recognized and manufactured in the USA.

Product Highlights

This compressor is built for reliability in HVAC applications. Its design promotes lower noise levels and operational efficiency, making it a preferred choice among HVAC professionals.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• Weight: 49.6 lbs
• Amperage: 15.7 Amps
• BTU Output: 29,000 BTU
• Voltage: 208-230 VAC
• Dimensions: Height - 15.27 in, Length - 9.56 in, Width - 9.56 in
• Displacement: 1.68 in³/Rev
• Oil Type: Polyolester (POE)
• Refrigerant: R-410A
• Sound Level: 68-73 dBA
