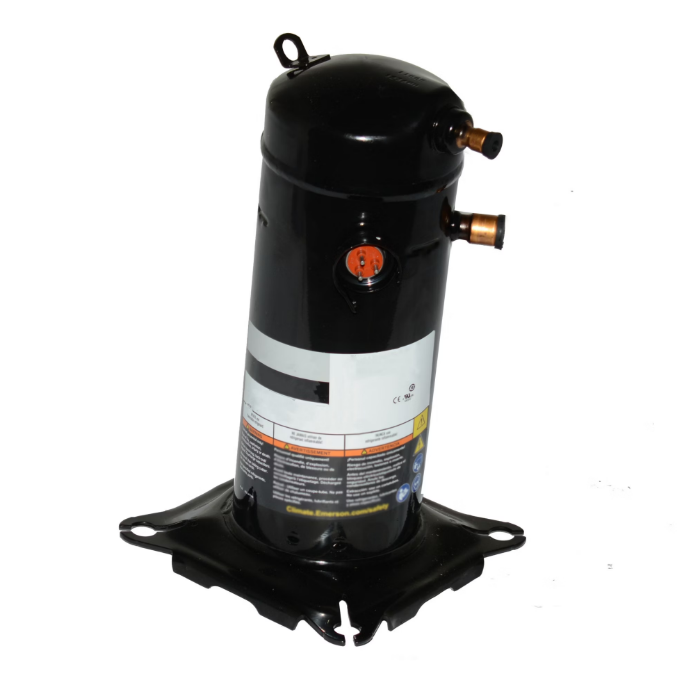

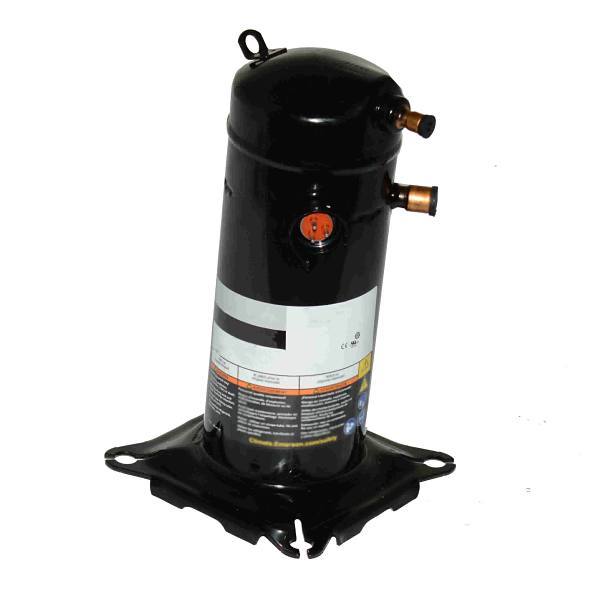

CARRIER ZP20KVE-PFV-830 Scroll Compressor 208-230 VAC R-410A

Product Description

The CARRIER ZP20KVE-PFV-830 is a single-phase scroll compressor ideal for HVAC systems. It operates efficiently at 208-230 VAC, providing a cooling output of 20,000 BTU. This compressor contains a hermetic housing filled with twenty-five ounces of Polyolester oil and is designed to work with R-410A refrigerant. It features a half-inch OD stub discharge and three-quarter-inch OD stub suction line fittings. The unit meets UL standards, is compliant with TAA/BAA, and is manufactured in the USA.

• Single-phase operation with a power range of 208-230 VAC.
• Equipped with a hermetic compressor housing for reliable performance.
• Designed to minimize vibrations for quieter operation.

Product Highlights

This compressor is built with a simplified scroll design that reduces the risk of liquid refrigerant slugging and limits maintenance needs due to fewer moving parts.

Product Information

Standard Information

• Brand: CARRIER
• Model: ZP20KVE-PFV-830

Technical Specifications

• Voltage: 208-230 VAC
• Compressor Type: Scroll
• BTU Output: 20,000
• Refrigerant: R-410A
• Oil Charge: 25 ounces Polyolester
• Condensing Temperature: 130°F (54.44°C)
• Evaporating Temperature: 45°F (7.22°C)
• Liquid Temperature: 115°F (46.11°C)
• Weight: 47.950 pounds
• Dimensions: 14.9 inches (L) x 13.7 inches (W) x 19.1 inches (H)
• UL Listed: Yes
• Approval Standards: TAA/BAA Compliant
