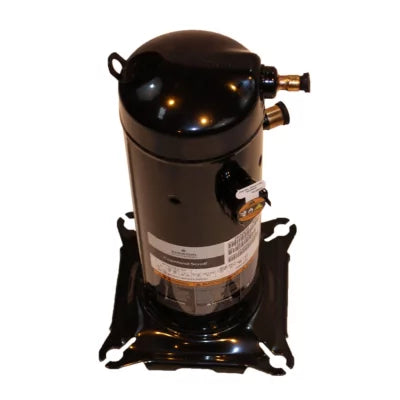

CARRIER ZP20K5E-PFV-830 Scroll Compressor

Product Description

The CARRIER ZP20K5E-PFV-830 is a hermetic scroll compressor compatible with R-410A refrigerant. It operates using 208-230 VAC power in single-phase mode and delivers a cooling capacity of 20,000 BTU. This compressor is designed for easy installation with stub-type suction and discharge fittings measuring three-quarters inch and one-half inch in diameter.

• Hermetic scroll design for efficient operation
• Reduced maintenance with fewer moving parts
• Noise reduction due to lower vibration levels

Product Highlights

This unit provides a reliable solution for HVAC systems, featuring built-in protection mechanisms and UL recognition for safety. The compressor measures nine point six nine inches in length and width, and fifteen point two seven inches in height, weighing forty-seven point four pounds. Its compact design and effective cooling capabilities make it ideal for various applications.

Product Information

Standard Information

• Brand: CARRIER
• Country of Origin: USA

Technical Specifications

• Length: 9.69 inches
• Width: 9.69 inches
• Height: 15.27 inches
• Weight: 47.4 pounds
• Voltage: 208-230 VAC
• Refrigerant: R-410A
• BTU Output: 20,000
• Sound Level: 66-71 dBA
• Mounting Dimensions: 7.5 x 7.5 x 16.02
• Oil Type: Polyolester (POE)
• Initial Oil Charge: 25 ounces
• Amps: 6.1-9.1
• Protection: Yes
• Approvals: UL Recognized
