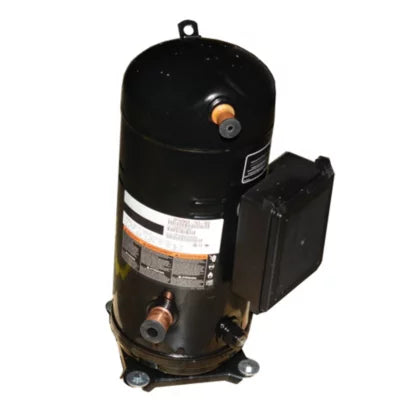

CARRIER ZP182KCE-TE5-950 Scroll Compressor

Product Description

The CARRIER ZP182KCE-TE5-950 is a hermetic scroll compressor specifically designed for use with R-410A refrigerant. This unit operates on a three-phase power supply at 200/220 or 200/230 VAC and supports frequencies of 50/60 Hz. The compressor achieves a BTU output of 183,000, making it suitable for various HVAC applications.

• Stub-type discharge connection with a diameter of 7/8 inches.
• Suction line fitting with a diameter of 1 3/8 inches.
• Uses Polyolester (POE) oil with an initial charge of 114 oz.

Product Highlights

The compressor is designed with enhanced protection features, reducing the risk of damage from liquid refrigerant slugging and other debris. Additionally, the reduction in moving parts minimizes maintenance needs and operation produces lower vibration levels, which in turn decreases noise and wear on components.

Product Information

Standard Information

• Brand: Carrier
• Compressor Type: Scroll

Technical Specifications

• Length: 12.93 inches
• Width: 11.73 inches
• Height: 22.21 inches
• Weight: 146 pounds
• Amps: 47.7-52
• BTU Output: 183,000
• Sound Level: 82-87 dBA
• Voltage: 200/220, 200/230 VAC
• Refrigerant: R-410A
• Oil Charge Initial: 114 oz
• Rated Load Amps (RLA): 55.8, 62.1
• Protected Against: External Enhanced
• Country of Origin: USA
