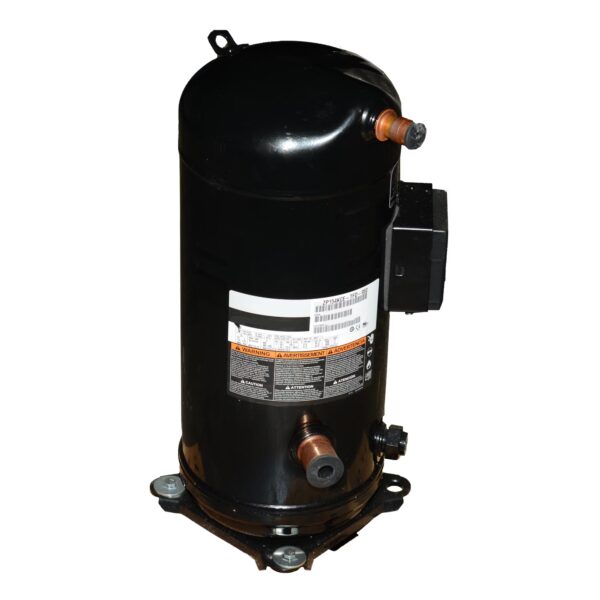

Carrier ZP154KCE-TFD-950 Scroll Compressor 154000 460 Volt

Product Description

The CARRIER ZP154KCE-TFD-950 is a scroll compressor designed for HVAC systems, operating with R-410A refrigerant at 460 Volts. This genuine OEM replacement part offers a capacity of approximately 154,000 BTU, ensuring efficient performance for various Carrier, Bryant, and Payne models. It features a robust design suitable for demanding applications, providing reliable operation for air conditioning and refrigeration units.

• Utilizes a scroll design with fewer moving parts, contributing to reduced maintenance requirements.
• Features a simplified internal valve design that enhances resistance to liquid refrigerant slugging and debris.
• Engineered for higher efficiency across its operating range, optimizing energy consumption.

Product Highlights

Genuine OEM scroll compressor for R-410A systems, offering 154,000 BTU capacity and 460 Volt operation with enhanced durability and efficiency.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ZP154KCE-TFD-950
• Country of Origin: USA

Technical Specifications

• Brand: CARRIER
• MPN: ZP154KCE-TFD-950
• SKU: ZP154KCE-TFD-950
• Manufacturer: Carrier HVAC
• Condition: New
• Compatibility: Carrier, Bryant, Payne appliances
• Product Type: Scroll Compressor
• Refrigerant: R-410A
• BTU Output: 138,000-155,000
• Voltage: 380 VAC, 420 VAC, 460 VAC
• Frequency: 50/60 Hz
• Phase: Three
• Amperage: 19-21 Amps
• Rated Load Amps (RLA): 22.4, 25 Amps
• Locked Rotor Amps (LRA): 150 Amps
• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 114 oz
• Displacement: 8.72 in^3/Rev
• Discharge Connection Size OD: 7/8 inch
• Discharge Connection Type: Stub
• Suction Line Size OD: 1 3/8 inch
• Suction Line Fitting Type: Stub
• Condensing Temperature: 130°F (54.44°C)
• Evaporating Temperature: 45°F (7.22°C), 35°F (1.67°C)
• Liquid Temperature: 115°F (46.11°C)
• Return Gas Temperature: 65°F (18.33°C)
• Mass Flow: 1930 lbs/hr, 2290 lbs/hr
• Mounting Dimensions: 7.5 inch x 7.5 inch x 23.03 inch
• Certifications: UL Recognized
• Sound Level: 80-85 dBA
• Protection: Yes
