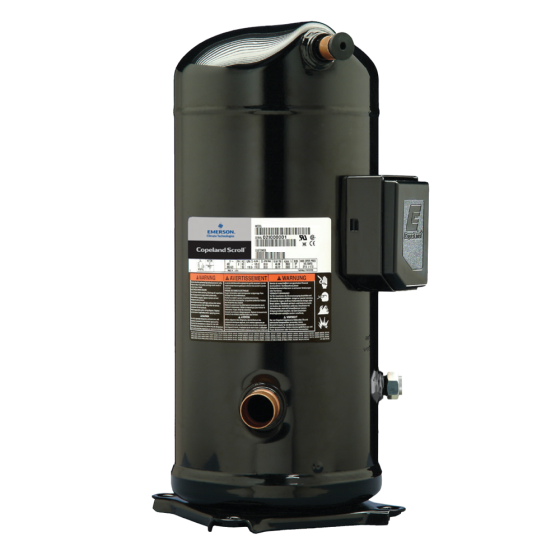

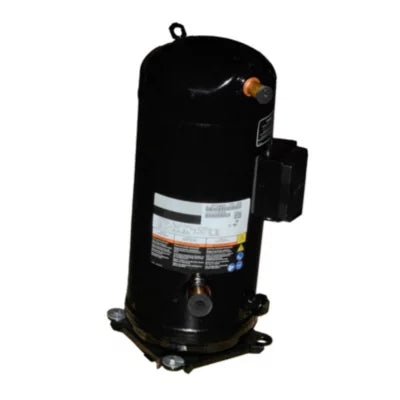

CARRIER ZP154KCE-TFD-855 Scroll Compressor - R410A - 154000 BTU - 460V 3-Phase

Product Description

The CARRIER ZP154KCE-TFD-855 is a scroll compressor made for air conditioning and heat pump systems. This model uses R-410A refrigerant and operates at 460 volts with a three-phase power supply. The compressor has a capacity ranging from one hundred fifty-four thousand to one hundred ninety thousand BTU. A vibration isolation system is included to minimize noise and wear during operation. The hermetic casing shields the inner parts from external elements.

• Operates on 460V, 3-Phase power, delivering 154000 BTU capacity using R-410A refrigerant.
• Features a vibration isolation system, reducing operational noise and minimizing wear.
• Designed with suction and discharge line sizes of 1-3/8 and 7/8 respectively.

Product Highlights

This scroll compressor is ideal for heavy-duty applications, ensuring efficient performance in climate control systems.

Product Information

Standard Information

• Brand: CARRIER
• Product Family: ZP

Technical Specifications

• MPN: ZP154KCE-TFD-855
• Voltage: 460 VAC
• Weight: 143 pounds
• Dimensions: 10.38 inches (Length) x 11.23 inches (Width) x 21.72 inches (Height)
• Discharge Connection Size: 7/8 inches
• Suction Line Size: 1-3/8 inches
• Amps: 25
• BTU Output: 155,000
