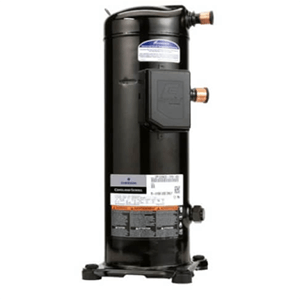

CARRIER ZP137KCE-TFD-950 Hermetic Scroll Compressor

Product Description

The CARRIER ZP137KCE-TFD-950 is an aftermarket hermetic scroll compressor suitable for use with R-410A refrigerant. It utilizes 380/420/460 VAC, 50/60 Hz, in a three-phase configuration. The compressor offers axial and radial compliance to prevent liquid refrigerant damage.

• Designed for a displacement of 7.76.
• Suitable for systems with a BTU output between 110,000 and 135,000.
• Initial oil charge is 110 ounces of polyolester oil.

Product Highlights

This compressor minimizes sound and vibration during operation.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Hermetic Scroll

Technical Specifications

• Weight: 137 lbs
• Amps: 16.3-18
• BTU Output: 110,000-135,000
• Cubic Measurement: 1.4166
• Cycle/Hertz: 50/60 Hz
• Height: 21 inches
• Length: 10.38 inches
• Width: 11.23 inches
• Initial Oil Charge: 110 oz
• Oil Type: Polyolester (POE)
• Rated Load Amps (RLA): 18.6
• Refrigerant: R-410A
• Sound Level: 80-85 dBA
• Voltage: 380/420/460 VAC
• Condensing Temperature: 130°F (54.44°C)
• Evaporating Temperature: 45°F (7.22°C)
