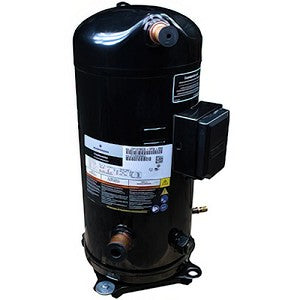

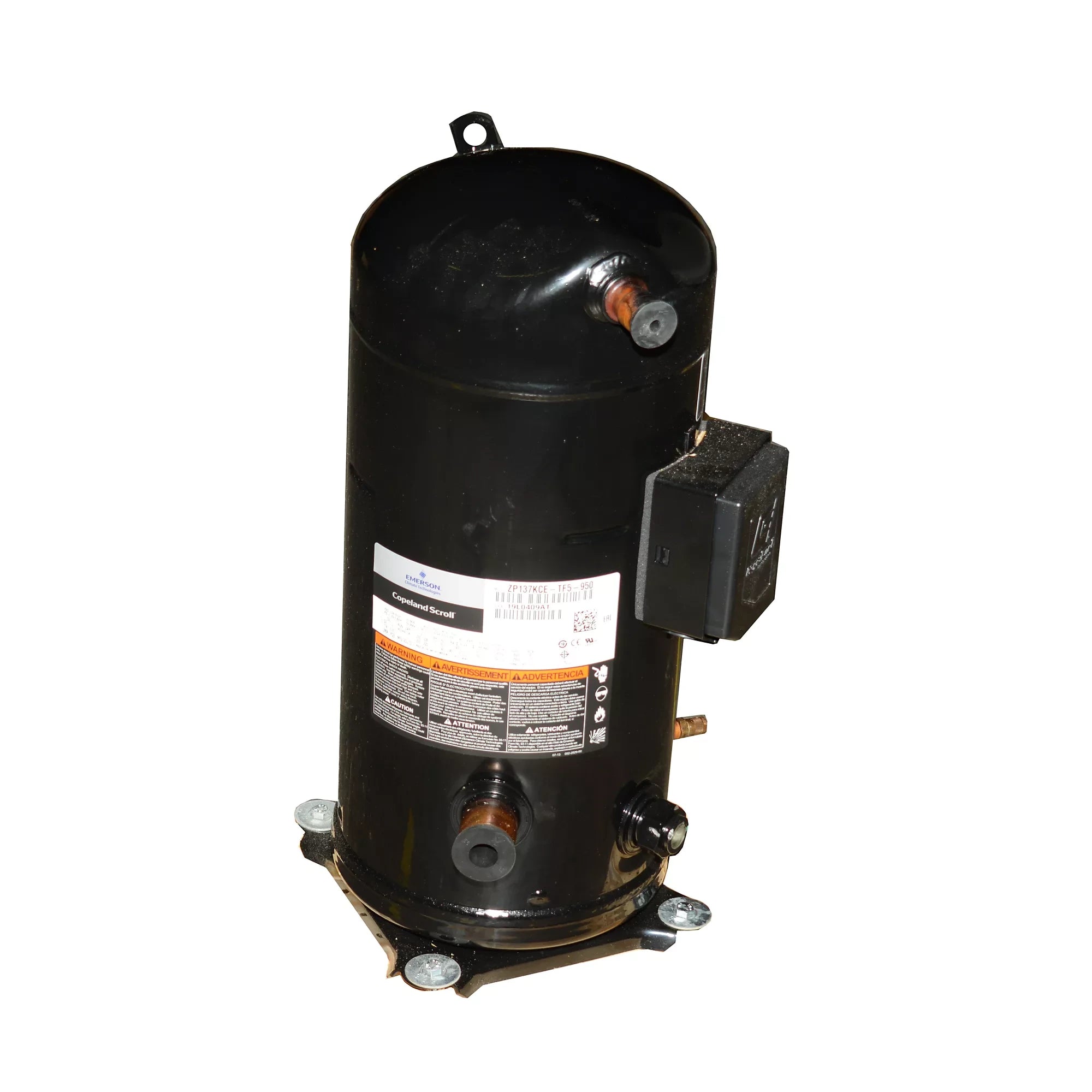

Copeland ZP137KCE-TF5-950 Scroll Compressor 137000 BTU (11.4 Ton)

COPELAND
Brand: COPELAND
SKU: ZP137KCE-TF5-950
Availability: In Stock

Ships via freight in 1-3 business days
$4,334.62
$4,334.62
LTL Delivery

This product weighs 138 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Copeland ZP137KCE-TF5-950 is a Copeland scroll compressor rated at 137,000 BTU (11.4 ton) for R-410A systems. It is a hermetic, three-phase unit that operates on 200–230 V AC (50/60 Hz), includes polyolester (POE) oil and internal inherent motor protection, and provides a displacement of 7.76 in3/rev with 1-3/8 in ODF suction and 7/8 in ODF discharge connections.

  • Nominal capacity 137,000 BTU/hr (11.4 ton) for R-410A refrigerant; cooling efficiency approx. 11 EER
  • Electrical: 3-phase operation, 200–230 V AC (50/60 Hz); rated load amps 48.1 A; locked rotor amps 245 A
  • Mechanical: hermetic scroll design, displacement 7.76 in3/rev; suction 1-3/8 in ODF, discharge 7/8 in ODF; POE oil included

Product Highlights

137,000 BTU R-410A three-phase hermetic scroll compressor with POE oil, internal inherent protection, and 1-3/8 in/7/8 in ODF connections

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZP137KCE-TF5-950
  • Country of Origin: USA
Technical Specifications
Brand
Copeland
MPN
ZP137KCE-TF5-950
Product Type
Scroll compressor (hermetic)
Product Family
ZP
Capacity (BTU/hr)
137,000
Capacity (ton)
11.4 Ton
Refrigerant
R-410A
Oil Type
Polyolester (POE)
Input Voltage
200–230 V AC, 3-phase
Frequency
50/60 Hz
Phase
Three
Rated Load Amps (RLA)
48.1 A
Amps
53.6 A
Locked Rotor Amps (LRA)
245 A
Displacement
7.76 in3/rev
Mass Flow
1710–2020 lbs/hr
Suction Connection Size (OD)
1-3/8 in ODF
Discharge Connection Size (OD)
7/8 in ODF
Suction Connection Type
Stub / ODF soldered
Discharge Connection Type
Stub / ODF soldered
Oil Charge Initial
110 oz
Oil Recharge
6.625 pints
Dimensions (Height x Length x Width)
21 in x 10.38 in x 11.23 in
Mounting Dimensions
7.5 in x 7.5 in x 21.75 in
Sound Level
80-85 dBA
Protection
Internal inherent motor protection
Certifications / Ratings
UL listed; ASHRAE/ARI (listed as ARI in source)
Application
High temperature air conditioning / heat pump (AC/HP) duty
Cooling Efficiency
approx. 11 EER
Country of Origin
USA
GTIN
00822529164083
UPC
822529164083
Datasheet (original)
https://cdn.bakerdist.com/copeland_zp137kce-tf5-950_article_1409697868873_en_war.pdf
Datasheet (mirrored)
https://voomi-assets-public.s3.amazonaws.com/products/2024-08-25/voomi_COPELAND_ZP137KCETF5950_pdf_documents_raw_0_3_8bc9308ea71d798971cb59c3cd22b3a0474824.pdf
Additional Identifiers
pdf_mpn: ZP137KCETF5950; pdf_refid: COPELANDZP137KCETF5950
