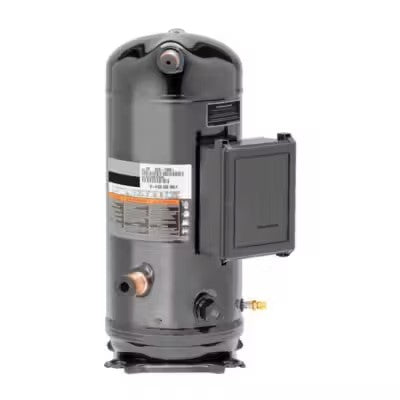

CARRIER ZP104KCE-TFD-950 Scroll Compressor

Product Description

The CARRIER ZP104KCE-TFD-950 is a hermetic scroll compressor suitable for R-410A refrigerant. This unit operates using 380/420/460 VAC and is compatible with three-phase power. Key specifications include a displacement of five point eighty-eight cubic inches per revolution and an initial oil charge of eighty-five ounces of polyolester (POE) oil. The compressor delivers a BTU output ranging from eighty-seven thousand five hundred to one hundred six thousand while managing mass flow between twelve hundred ninety to fifteen hundred thirty-five pounds per hour.

• Operates on multiple voltage configurations: 380, 420, 460 VAC
• Compact design for installations in limited space
• Low vibration and noise during operation

Product Highlights

The CARRIER ZP104KCE-TFD-950 is engineered to perform with evaporating temperatures of thirty-five degrees Fahrenheit (one point sixty-seven degrees Celsius) and forty-five degrees Fahrenheit (seven point twenty-two degrees Celsius), while reaching condensing temperatures of one hundred thirty degrees Fahrenheit (fifty-four point forty-four degrees Celsius).

Product Information

Standard Information

• Brand: CARRIER
• Condition: New

Technical Specifications

• Item Number: ZP104KCE-TFD-950
• Weight: 120 lbs
• Amps: 13.1-14.4
• BTU Output: 87,500-106,000
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Discharge Connection Type: Stub
• Evaporating Temperature: 35°F (1.67°C), 45°F (7.22°C)
• Height: 22.72 inches
• Length: 11.7 inches
• Width: 10.33 inches
• Voltage: 380/420/460 VAC
• Discharge Connection Size: 7/8 inches
• Suction Line Size: 1 1/8 inches
