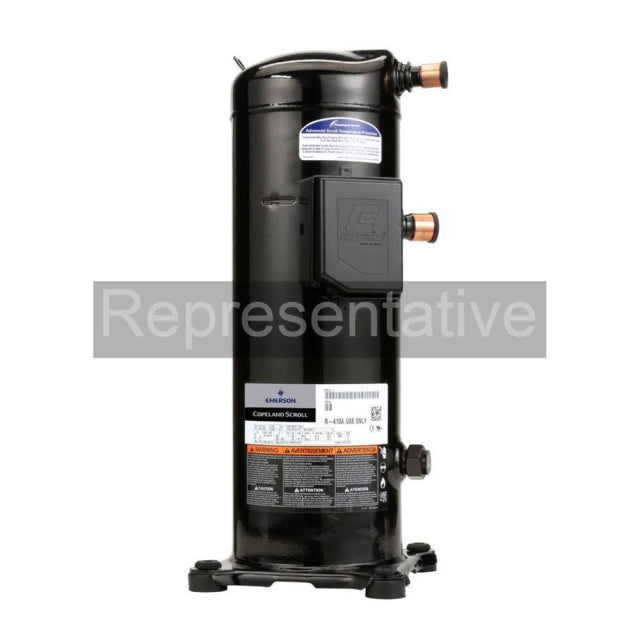

CARRIER ZP104KCE-TF5-950 Scroll Compressor

Product Description

The CARRIER ZP104KCE-TF5-950 is a hermetic scroll compressor intended for air conditioning and heat pump systems. It uses R-410A refrigerant with polyolester oil. This compressor operates at a voltage of 200/220 and 200/230 VAC and supports both 50 Hz and 60 Hz frequencies. The BTU output ranges between 87,500 and 106,000, with a specific capacity of 104,000 BTU.

• Designed for chlorine-free refrigerants.
• Includes centrifugal oil pump for maintenance.
• Effective liquid handling capabilities.

Product Highlights

This compressor is designed to enhance system efficiency and reliability in HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• Weight: 105.8 lbs
• Height: 22 in
• Length: 11.7 in
• Width: 10.33 in
• Amps Range: 24.9-27.2
• BTU Output: 87,500-106,000
• Oil Type: Polyolester (POE)
• Rated Load Amps: 28.2
• Discharge Connection Size: 7/8 in
