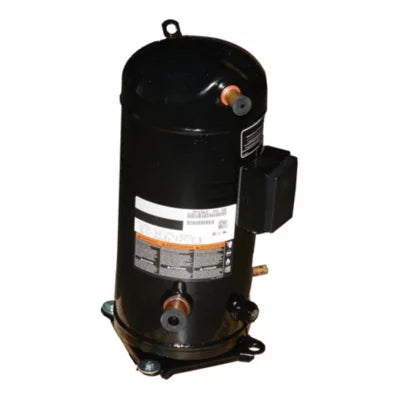

CARRIER ZP103KCE-TFD-950 Scroll Compressor

Product Description

The CARRIER ZP103KCE-TFD-950 is a hermetic scroll compressor designed for effective cooling and heating. This compressor operates with R-410A refrigerant and supports a three-phase power supply at 380/420/460 VAC, accommodating both fifty and sixty hertz frequencies. It offers a heating and cooling capacity ranging from eighty-six thousand to one hundred five thousand BTUs, suitable for various HVAC applications.

• Features three moving parts, helping reduce maintenance needs.
• Constructed without complex internal valves, minimizing risks from liquid refrigerant slugging.
• Operates quietly, contributing to greater longevity of components.

Product Highlights

This compressor is recognized for its simplicity and durability, making it ideal for commercial and industrial heating and cooling systems.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• Length: 11.5 inches
• Width: 122.54 inches
• Height: 21 inches
• Weight: 135 pounds
• Amps: 14.3-14.4
• BTU Output: 86,000-105,000
• Rated Load Amps (RLA): 16.7-18.6
• LRA: 114
• Displacement: 5.88
• Oil Charge Initial: 114 oz.
• Refrigerant: R-410A
• Cycle/Hertz: 50/60 Hz
• Sound Level: 77-82 dBA
• Country of Origin: USA
• UL Recognized: Yes
