Carrier TSTWRH01 Cor 7c Wifitstat Touchscreen7d 24 VAC 3 VA 4.261 inch width x 1.037 inch depth x 4.261 inch height replaced by TP-WEM01-A

Product Description

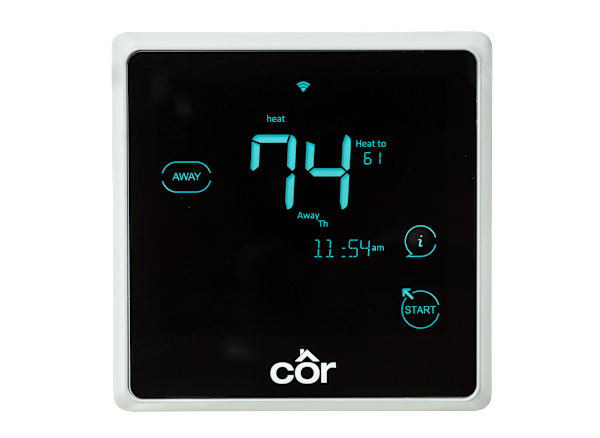

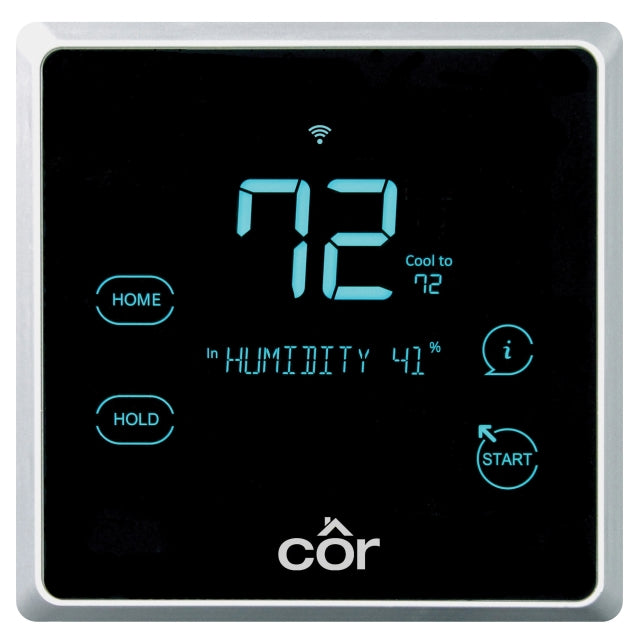

The CARRIER TSTWRH01 Cor 7c Wifitstat Touchscreen7d is a programmable thermostat designed for residential HVAC systems. Operating on 24 VAC with a 3 VA power rating, this smart thermostat offers 7-day programming options and can be remotely controlled via a mobile app. It measures 4.261 inches in width, 1.037 inches in depth, and 4.261 inches in height, providing temperature and humidity control. It is compatible with 2H/2C and 3H/2C systems.

• Remote access via mobile app for smartphone control.
• 7-day guided schedule programming with Touch-N-Go quick settings.
• Integrated Wi-Fi for smart home connectivity and energy management.

Product Highlights

This programmable Wi-Fi thermostat provides remote control, 7-day scheduling, and energy-saving features for enhanced home comfort and efficiency.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: TSTWRH01
• Country of Origin: Mexico

Technical Specifications

• Country of Origin: Mexico
• Type: Programmable Thermostat
• Input Voltage: 24 VAC
• Power Consumption: 3 VA
• Operating Temperature: 32 to 104 Deg F
• Storage Temperature: -22 to 135 Deg F
• Wireless Technology: Wi-Fi
• Programmability: 7 Day
• Power Method: Hardwired
• HVAC Stages: 2 Heat/2 Cool, 3 Heat/2 Cool
• Display Type: Touchscreen, Backlit
• Application Compatibility: 3 Heat/2 Cool Heat Pump - 2 Heat/2 Cool Conventional
• Language: English
• HVAC Zones: 1
• Heat Pump Application: With Auxiliary Heat
• Set Point Temperature Range: 50 to 90 Deg F (10 to 32 Deg C)
• UL Listed: No
• UL Recognized: No
• C-Wire Requirement: Not required with optional two-wire relay module
• Two-Wire System Compatible: Yes
• Power Sharing: No
• Geofencing: Yes
• Occupancy Sensor: No
