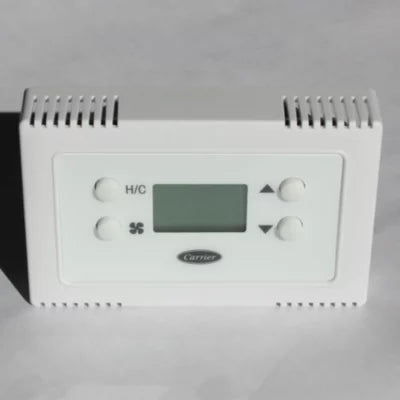

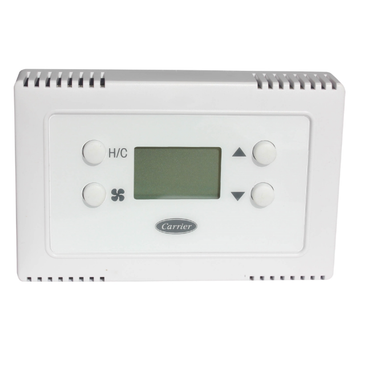

CARRIER TB-NHP01-A Heat Pump Thermostat

Product Description

The CARRIER TB-NHP01-A is a non-programmable thermostat designed for heat pump systems. This unit supports two heating stages and one cooling stage. Users can select Off, Cool, and Heat modes with a simple push button. The thermostat features a one point four inch digital LCD for temperature display, available in Fahrenheit or Celsius. It operates on a twenty-four VAC power source or with two AA alkaline batteries, which are included. The device's non-volatile memory keeps settings during power outages, ensuring consistent performance. It is designed for horizontal J-box mounting and maintains a temperature accuracy of plus or minus two degrees Fahrenheit within a range of fifty degrees Fahrenheit to ninety degrees Fahrenheit.

• Supports two heating and one cooling stage for heat pump systems.
• Displays temperature in Fahrenheit or Celsius on a one point four inch LCD.
• Retains settings during outages with non-volatile memory.

Product Highlights

This thermostat is ideal for HVAC professionals looking for reliable temperature control in heat pump systems.

Product Information

Standard Information

• Device Type: Non-Programmable Thermostat
• Display Size: 1.4 inches

Technical Specifications

• HVAC System Compatibility: Heat Pump
• Heating Stages: 2
• Cooling Stages: 1
• Input Voltage (AC): 24 VAC
• Batteries: 2 AA Alkaline
• Dimensions: 4.3 x 2.7 x 0.9 inches
• Weight: 0.2 lb
• Operating Temperature: 32°F to 104°F
• Accuracy: +/- 2°F
