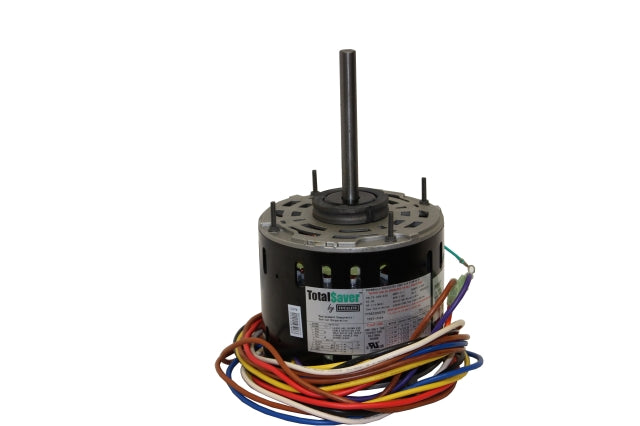

CARRIER T257-3464 Direct Drive Blower Motor

Product Description

The CARRIER T257-3464 is a direct drive blower motor suited for HVAC applications. This motor offers four-speed settings and can rotate in both directions. It operates on a voltage of two hundred eight to two hundred thirty VAC at sixty Hertz and has a horsepower range from one sixth to one half HP.

• Four-speed motor with reversible function.
• Input voltage of 208-230 VAC and 60 Hz.
• Includes thermal overload protection for safety.

Product Highlights

Ideal for continuous operation in heating and cooling systems, the CARRIER T257-3464 offers reliable performance.

Product Information

Standard Information

• Manufacturer Part Number: T257-3464
• Motor HP: 1/6 HP - 1/2 HP

Technical Specifications

• Input Voltage: 208-230 VAC
• Cycle/Hertz: 60 Hz
• Number of Speeds: Four
• Rotation: Reversible
• Full Load Amps: 3.1
• RPM: 1100
• Phase: Single
• Motor Type: PSC
• Shaft Diameter: 1/2 inches
• Shaft Length: 5 inches
• NEMA Frame: 48
• Bearing Type: Sleeve
• Insulation Class: Class B
• Protection: Thermal Overload Protection
• Type: Evaporator Fan
• Weight: 22.65 lbs
• Width: 6.8 inches
• Height: 10.2 inches
• Length: 6.8 inches
• Capacitor MFD µF: 5/7.5/10
• CSA Listing: Yes
• Prop 65: No
• Warranty Offered: Yes
