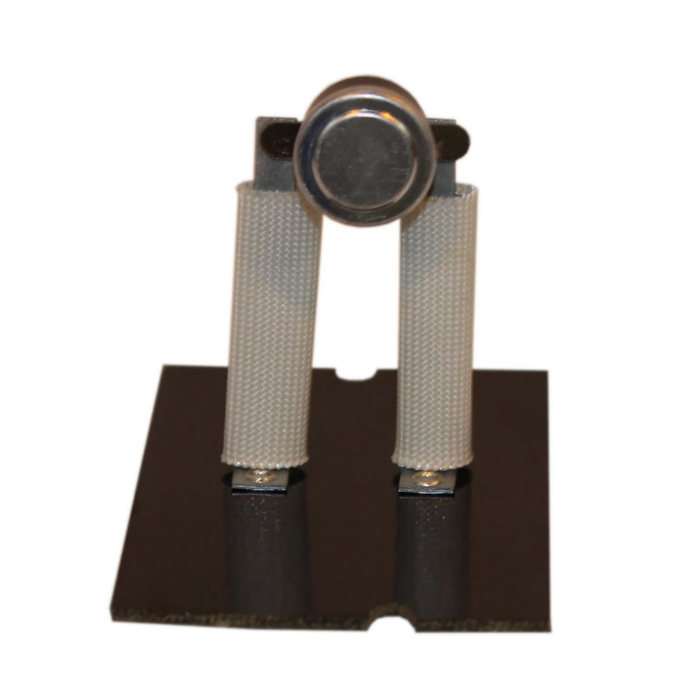

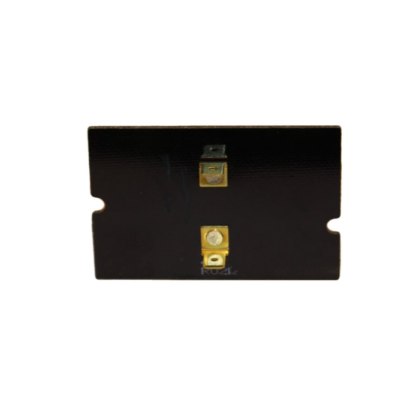

CARRIER R02R003 Limit Switch

Product Description

The CARRIER R02R003 is a limit switch designed for temperature control. This switch operates automatically based on temperature levels. It opens when the temperature reaches one hundred ninety-five degrees Fahrenheit and closes at one hundred sixty-five degrees Fahrenheit. The insertion length of the switch is one and three-quarter inches, making it suitable for various applications.

• Opens on temperature rise and closes on temperature drop.
• Temperature open point: one hundred ninety-five degrees Fahrenheit.
• Temperature close point: one hundred sixty-five degrees Fahrenheit.

Product Highlights

The CARRIER R02R003 switch is essential for maintaining system efficiency and safety by providing reliable temperature regulation.

Product Information

Standard Information

• Brand: CARRIER
• MPN: R02R003

Technical Specifications

• Normally Closed: Opens on temperature rise at one hundred ninety-five degrees Fahrenheit.
• Closes on Temperature Drop: At one hundred sixty-five degrees Fahrenheit.
• Reset: Automatic.
• Insertion Length: One and three-quarter inches.
• Weight: Two ounces.
• Dimensions: Two point eight inches by one point eight inches by two point five inches.
