CARRIER P508-8417S Liquid Line Burnout Filter Drier

Product Description

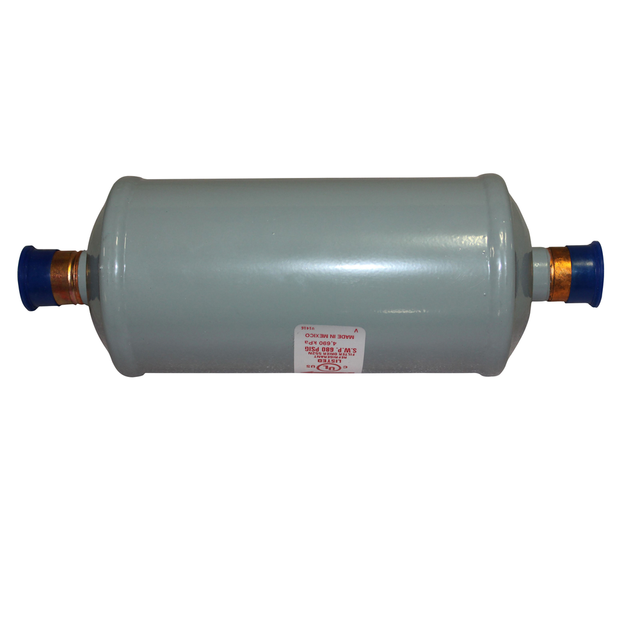

The CARRIER P508-8417S is a liquid line burnout filter drier designed for HVAC applications. It features a robust steel shell with a painted finish and durable copper connections. This unit utilizes a molecular sieve along with an activated alumina/carbon core for effective filtration. It has a nominal connection size of 7/8 ODF solder, ensuring compatibility with standard installations. The filter drier provides a filtration capability of forty microns and operates under a maximum working pressure of six hundred eighty PSI.

• Constructed with a painted steel shell and copper connections
• Features a molecular sieve and activated alumina/carbon core for optimal filtration
• Designed for a nominal connection size of 7/8 ODF solder

Product Highlights

This unit is UL listed and UL recognized for safety. Its compact dimensions make it suitable for various HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• MPN: P508-8417S

Technical Specifications

• Body Diameter: 3.0625 inches
• Connections Material And Finish: Copper
• Type: Liquid line
• Length: 10.4375 inches
• Core Material And Finish: Molecular sieve, activated alumina/carbon
• Max Working Pressure: 680 pounds per square inch
• Filtration: 40 microns
• Nominal Connection Size: 7/8 ODF solder
• Height: 3.0625 inches
• Shell Material And Finish: Painted steel
• UL Listed: True
• UL Recognized: True
• Width: 3.0625 inches
