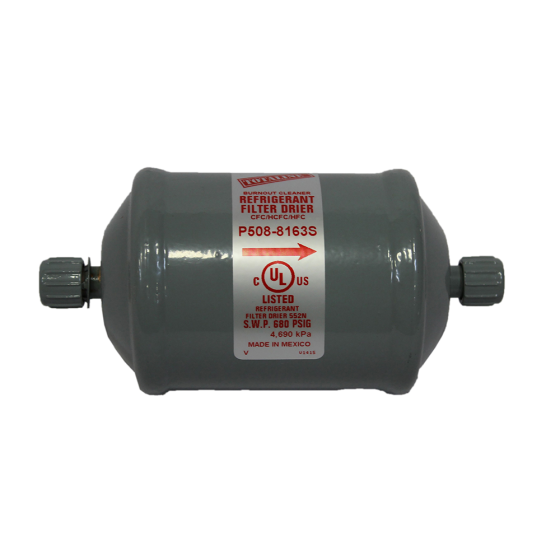

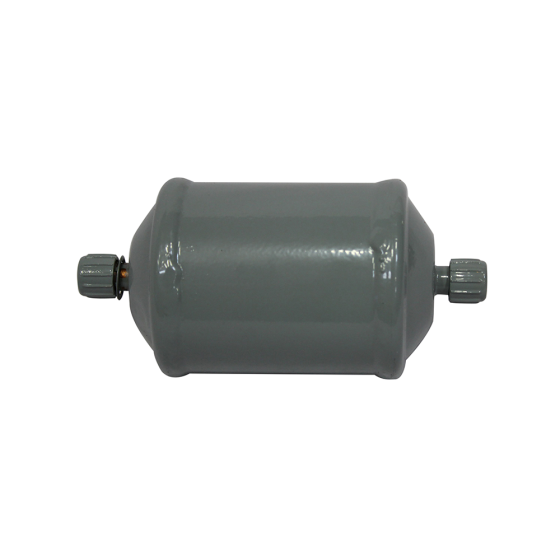

CARRIER P508-8163S Filter Drier - 3/8 ODF, 16 cu. in.

Product Description

The CARRIER P508-8163S filter drier is a key component for effective filtration in HVAC systems. This product features a three-eighths inch ODF connection for both inlet and outlet, making it easy to integrate into existing systems. Designed with a desiccant volume of sixteen cubic inches, it efficiently removes moisture and acids from refrigerants.

• Filtration rating of forty microns.
• Constructed with solid copper fittings and a robust steel shell.
• Corrosion-resistant with an epoxy powder paint finish.

Product Highlights

This filter drier supports wax control in low-temperature applications. With a maximum working pressure of six hundred eighty psig, the unit ensures reliable operation.

Product Information

Standard Information

• Manufacturer: CARRIER
• Model Number: P508-8163S

Technical Specifications

• Filtration: 40 microns
• Maximum Working Pressure: 680 psig
• Desiccant Volume: 16 cu. in.
• Connection Inlet Size: 3/8 ODF
• Connection Outlet Size: 3/8 ODF
• Shipping Weight: 2.00 lbs
• Shipping Dimensions: 3.45 in (H) x 3.35 in (L) x 8.55 in (W)
