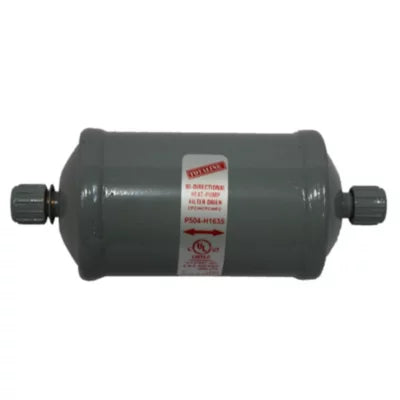

CARRIER P504-H163P TOTALINE Bi-Directional Liquid Line Filter Drier

Product Description

The CARRIER P504-H163P is a TOTALINE bi-directional liquid line filter drier designed specifically for heat pump systems. This filter drier is suitable for use with various refrigerants, including CFC, HCFC, and HFC types like R-407C. It uses a blend of seventy-five percent molecular sieve and twenty-five percent activated alumina blocks to ensure effective filtration. The internal check valves enable proper flow and filtration in both directions, optimizing system performance.

• Designed for bi-directional flow in heat pump applications.
• Utilizes a combination of molecular sieve and activated alumina for filtration.
• Compatible with CFC, HCFC, and HFC refrigerants.

Product Highlights

This filter drier is CSA Listed, UL Listed, and UL Recognized for safety and reliability. It features a sweat or braze connection type with both inlet and outlet sizes of three-eighths inches, making it easy to integrate into existing systems. With a maximum pressure rating of six hundred eighty PSI, this unit is compact and efficient.

Product Information

Standard Information

• Brand: TOTALINE
• Model Number: P504-H163P

Technical Specifications

• Composition: 75% molecular sieve, 25% activated alumina blocks
• Connection Type: Sweat or Braze
• Inlet Connection Size: 3/8 inches
• Outlet Connection Size: 3/8 inches
• Maximum Pressure: 680 PSI
• Weight: 0.95 pounds
• Shipping Weight: 1.25 pounds
• Dimensions: Length - 2.6 inches, Width - 6.5 inches, Height - 1.5 inches
• Approvals: CSA Listed; UL Listed; UL Recognized
• GTIN: 00662441442704
