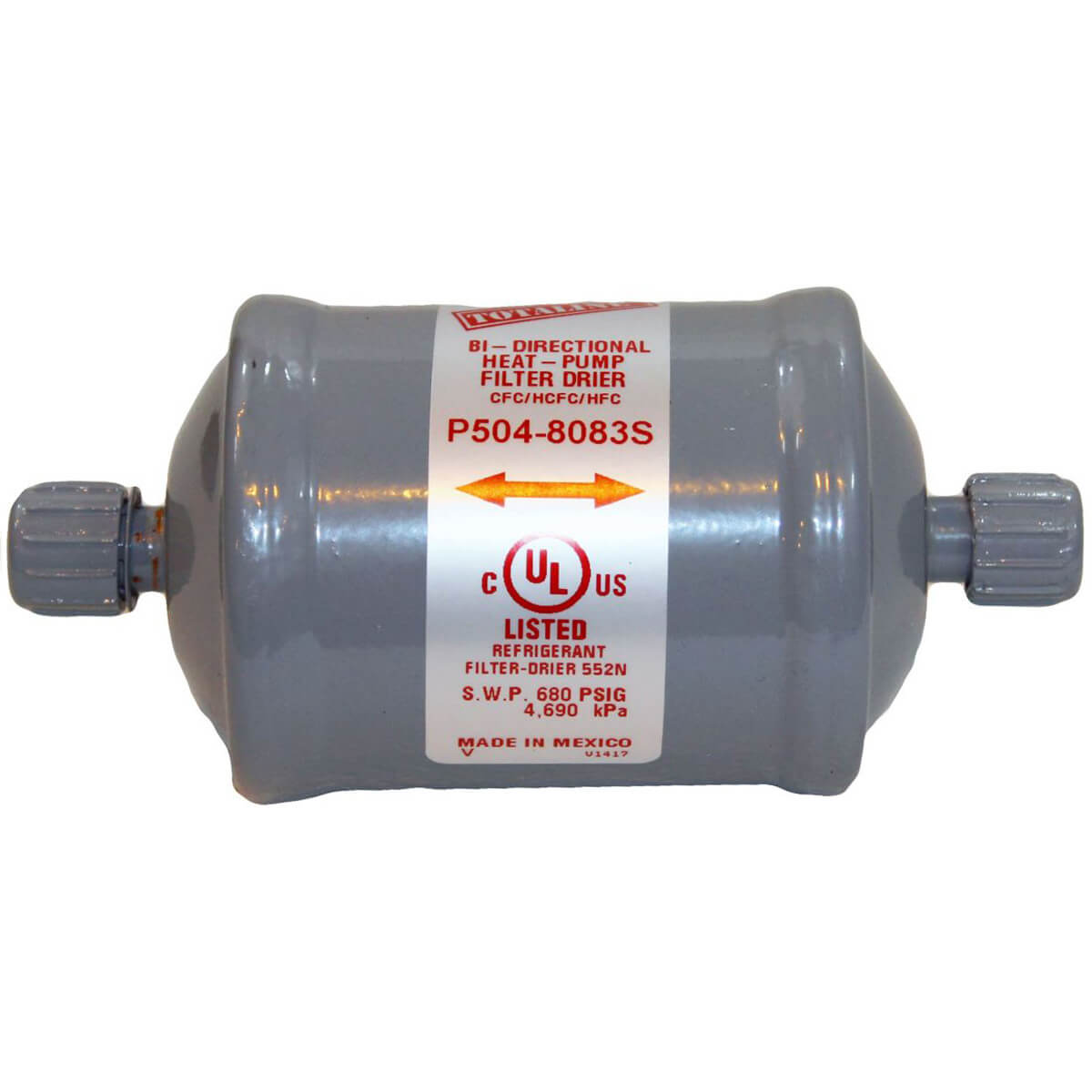

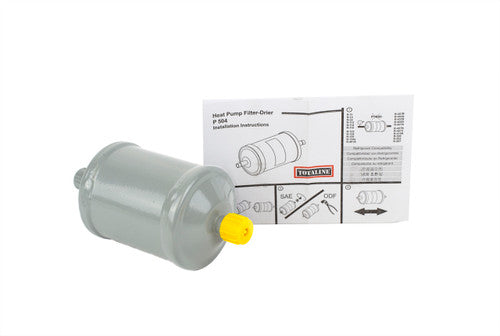

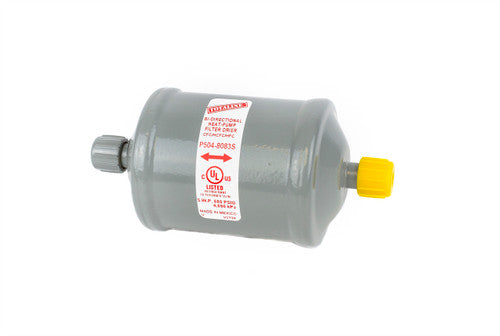

Carrier P504-8083S Filter Drier 8 Cubic Inches P504-H083S

Product Description

The Carrier P504-8083S Filter Drier is a bi-directional liquid line filter drier engineered for heat pump systems. This 8 cubic inch unit features 3/8 inch ODF sweat connections for reliable brazing. It handles CFC, HCFC, and HFC refrigerants, utilizing a desiccant blend of 75% molecular sieve and 25% activated alumina to remove moisture, acid, and solid contaminants down to 40 microns. This OEM replacement part, with a maximum working pressure of 680 PSIG and corrosion-resistant epoxy finish, maintains system integrity during heating and cooling cycles.

• Bi-Flow Functionality: Internal check valves allow core filtration in both flow directions, essential for heat pump liquid lines.
• Advanced Contaminant Control: Activated alumina and molecular sieve desiccant provide superior acid and moisture capacity.
• High-Pressure Rated: Validated for maximum working pressure up to 680 PSIG, making it compatible with high-pressure refrigerants like R-410A.

Product Highlights

Bi-directional liquid line filter drier for heat pump systems, featuring 3/8 inch ODF sweat connections and 8 cubic inch capacity, designed for contaminant removal.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: P504-8083S

Technical Specifications

• Compatible Models: PH10JA018000AAAA, PH10JA018000ACAA, PH10JA018000ADAA, PH10JA018000AEAA, PH10JA018000AFAA, PH10JA018000AGAA, PH10JA018000AHAA, PH10JA01800GADAA, PH10JA01800GAEAA, PH10JA01800GAFAA, PH10JA01800GAGAA, PH10JA01800GAHAA, PH10JA024000AAAA, PH10JA024000ABAA, PH10JA024000ACAA, PH10JA024000ADAA, PH10JA024000AEAA, PH10JA024000AFAA, PH10JA024000AGAA, PH10JA024000AHAA, PH10JA02400GADAA, PH10JA02400GAEAA, PH10JA02400GAFAA, PH10JA02400GAGAA, PH10JA02400GAHAA, PH10JA030000ACAA, PH10JA030000ADAA, PH10JA030000AEAA, PH10JA030000AGAA, PH10JA030000AHAA, PH10JA03000GADAA, PH10JA03000GAEAA, PH10JA03000GAGAA, PH10JA03000GAHAA, PH10JA036000AAAA, PH10JA036000ACAA, PH10JA036000ADAA, PH10JA036000AEAA, PH10JA036000AFAA, PH10JA036000AGAA, PH10JA036000AHAA, PH10JA036000AJAA, PH10JA03600GADAA, PH10JA03600GAEAA, PH10JA03600GAFAA, PH10JA03600GAGAA, PH10JA03600GAHAA, PH10JA03600GAJAA, PH11JA018000AAAA, PH11JA024000AAAA, PH11JA030000AAAA, PH11JA036000AAAA, PH12NA018000AAAA, PH12NA018000ABAA, PH12NA018000ACAA, PH12NA018000ADAA, PH12NA018000AGAA, PH12NA01800GADAA, PH12NA01800GAGAA, PH12NA024000AAAA, PH12NA024000ABAA, PH12NA024000ACAA, PH12NA024000ADAA, PH12NA024000AGAA, PH12NA02400GABAA, PH12NA02400GACAA, PH12NA02400GADAA, PH12NA02400GAGAA, PH12NA030000AAAA, PH12NA030000ABAA, PH12NA030000ACAA, PH12NA030000AGAA, PH12NA03000GABAA, PH12NA03000GACAA, PH12NA03000GAGAA, PH12NA036000AAAA, PH12NA036000ABAA, PH12NA036000ACAA, PH12NA036000AGAA, PH12NA03600GABAA, PH12NA03600GACAA, PH12NA03600GAGAA, PH13NR018000AAAA, PH13NR018000ACAA, PH13NR018000AEAA, PH13NR018000AFAA, PH13NR01800GAAAA/SERIAL-0114, PH13NR01800GACAA, PH13NR01800GAEAA, PH13NR01800GAFAA, PH13NR024000AAAA, PH13NR024000ACAA, PH13NR024000AEAA, PH13NR024000AFAA, PH13NR02400GAAAA, PH13NR02400GACAA, PH13NR02400GAEAA, PH13NR02400GAFAA, PH13NR030000AAAA, PH13NR030000ACAA, PH13NR030000AEAA, PH13NR030000AFAA, PH13NR03000GAAAA, PH13NR03000GACAA, PH13NR03000GAEAA, PH13NR03000GAFAA, PH13NR036000AAAA, PH13NR036000ACAA, PH13NR036000AEAA, PH13NR036000AFAA, PH13NR03600GAAAA, PH13NR03600GACAA, PH13NR03600GAEAA, PH13NR03600GAFAA
• Brand: Carrier
• SKU: P504-8083S
• Condition: New
• Replacement Part Number: P504-H083S
• Flow: Bi-Directional
• Connections: 3/8" ODF
• Capacity: 8 Cubic Inches
• Replaces Part Numbers: 433053S, KH45LD060, P504-8053S
• Type: Bi-directional liquid line filter drier
• Application: Heat pump systems
• Refrigerant Compatibility: CFC, HCFC, HFC
• Desiccant Blend: 75% molecular sieve, 25% activated alumina
• Filtration: Down to 40 microns
• Maximum Working Pressure: 680 PSIG
• Finish: Corrosion-resistant epoxy
