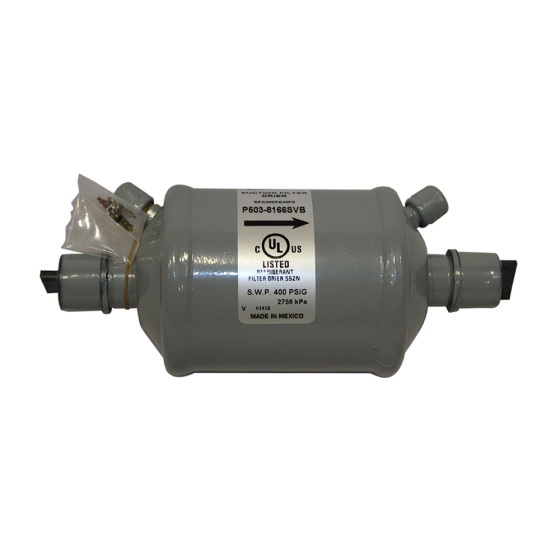

Carrier P503-8166SVB Suction Line Drier

Product Description

The Carrier P503-8166SVB is a suction line drier. This solid core filter drier is suitable for use with CFC, HCFC, and HFC refrigerants. It efficiently removes acid, moisture, and wax from HVAC systems. The product features solid copper fittings and is coated with a corrosion-resistant epoxy powder paint finish.

• Solid core desiccant for effective filtration.
• Compatible with CFC, HCFC, and HFC refrigerants.
• Equipped with 3/4 inch ODF connections.

Product Highlights

This drier uses a charcoal blend, enhancing its ability to eliminate soluble contaminants and wax.

Product Information

Standard Information

• Country of Origin: Mexico

Technical Specifications

• Maximum Working Pressure: 500 psig
• Filtration: 40 microns
• UL & CUL Approved: UL file number SA3124
• Desiccant Volume: 16 cu. in.
• Connection Inlet Size: 3/4 inch ODF
• Connection Outlet Size: 3/4 inch ODF
• Safety Standards: California Prop 65
• Operating Weight: 1.6 lbs
• Exterior Dimensions (D): 2.8 inches
• Exterior Dimensions (W): 7.6 inches
• Exterior Dimensions (H): 1.7 inches
• Product Model: P503-8166SVB
