CARRIER P503-8135SSFD Drier FL L Suct 13Cu-In 5/8 In ODF Solid C

Product Description

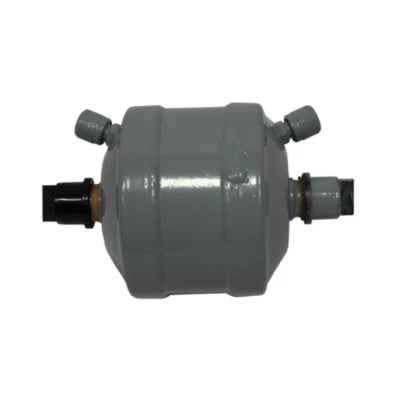

The CARRIER P503-8135SSFD is a totaline suction line filter drier designed for standard capacity applications. This unit has a volume of thirteen cubic inches and connects using a five eighths inch ODF solid connection. The diameter of this filter drier measures three and eleven sixteenths inches, while the cut-out length is three and three eighths inches, contributing to its effective installation in HVAC systems.

• Standard capacity filter drier suitable for various HVAC applications.
• Robust construction with epoxy powder coating for enhanced durability.
• Rated at four hundred psig, ensuring reliable performance under pressure.

Product Highlights

Designed for efficient operation, this suction line filter drier helps maintain system performance by removing moisture and contaminants, ensuring longer equipment life.

Product Information

Standard Information

• Brand: CARRIER
• MPN: P503-8135SSFD

Technical Specifications

• Unit Capacity: 13 cu-in
• Connection Size: 5/8 in ODF
• Diameter: 3-11/16 in
• Cut Out Length: 3-3/8 in
• Overall Length: 5-5/32 in
• Pressure Rating: 400 psig
• Coating: Epoxy powder coated
• Import Type: Yes
