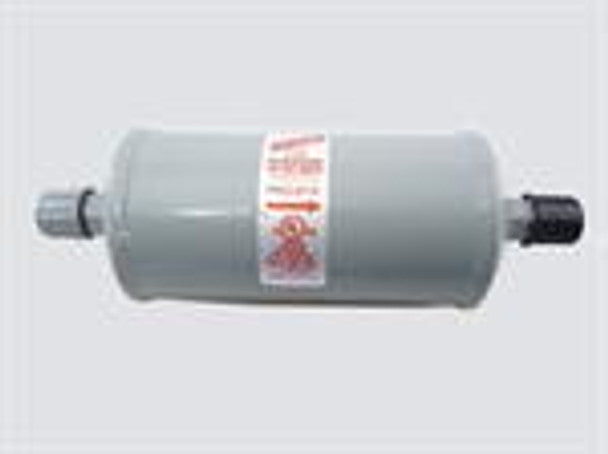

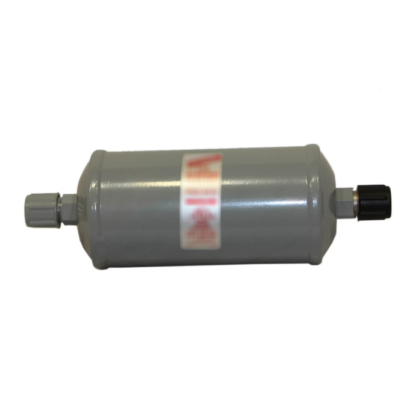

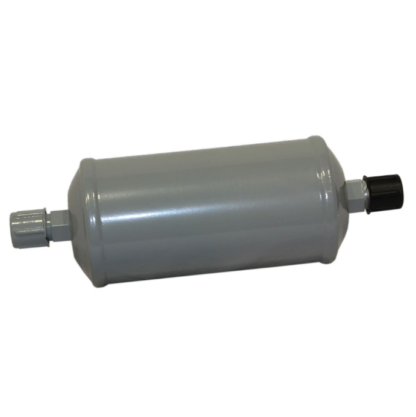

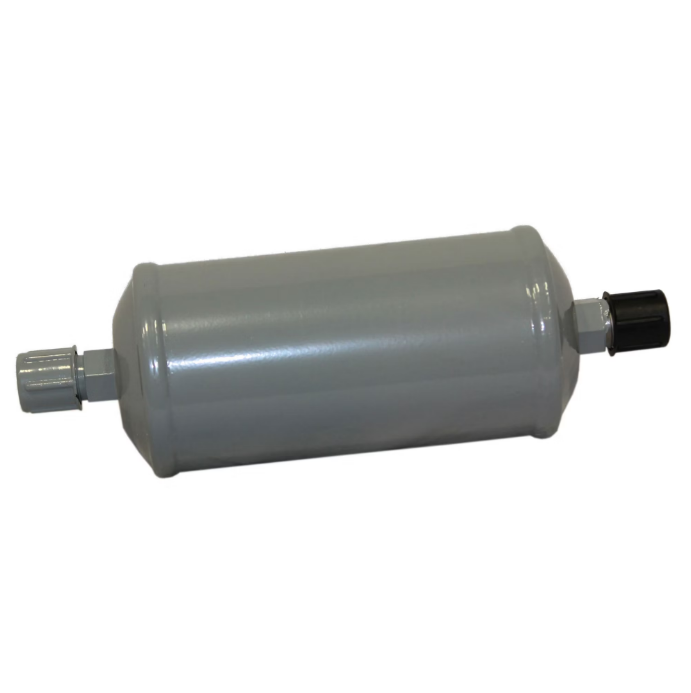

CARRIER P502-8415 Filter Drier - 5/8 SAE, 41 CI

Product Description

The CARRIER P502-8415 is a filter drier designed for liquid lines. It has a size of 41 cubic inches. This unit features a desiccant blend made of seventy-five percent molecular sieve and twenty-five percent activated alumina. It is built with solid copper connections and compacted beads, ensuring durability. The filter drier is compatible with various refrigerants, including R-134a, R-22, R-404A, R-410A, and R-507A. The connection type can be sweat or braze with a connection size of five-eighths inches.

• Includes five-eighths SAE inlet and outlet connections.
• Desiccant blend filters refrigerant efficiently.
• Compatible with multiple refrigerants for flexibility.

Product Highlights

The CARRIER P502-8415 is CSA Listed and manufactured in the USA, making it a reliable choice for HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• Composition: Compacted bead, solid copper connection, desiccant blend

Technical Specifications

• Weight: 12.25 lbs
• Dimensions: 11.1 x 3.8 x 3.6 inches
• Inlet Connection Size: 5/8 inches
• Outlet Connection Size: 5/8 inches
• Approvals: CSA Listed
• Country of Origin: USA
• Cubic Measurement: 0.0688
• GTIN: 00662441165788
