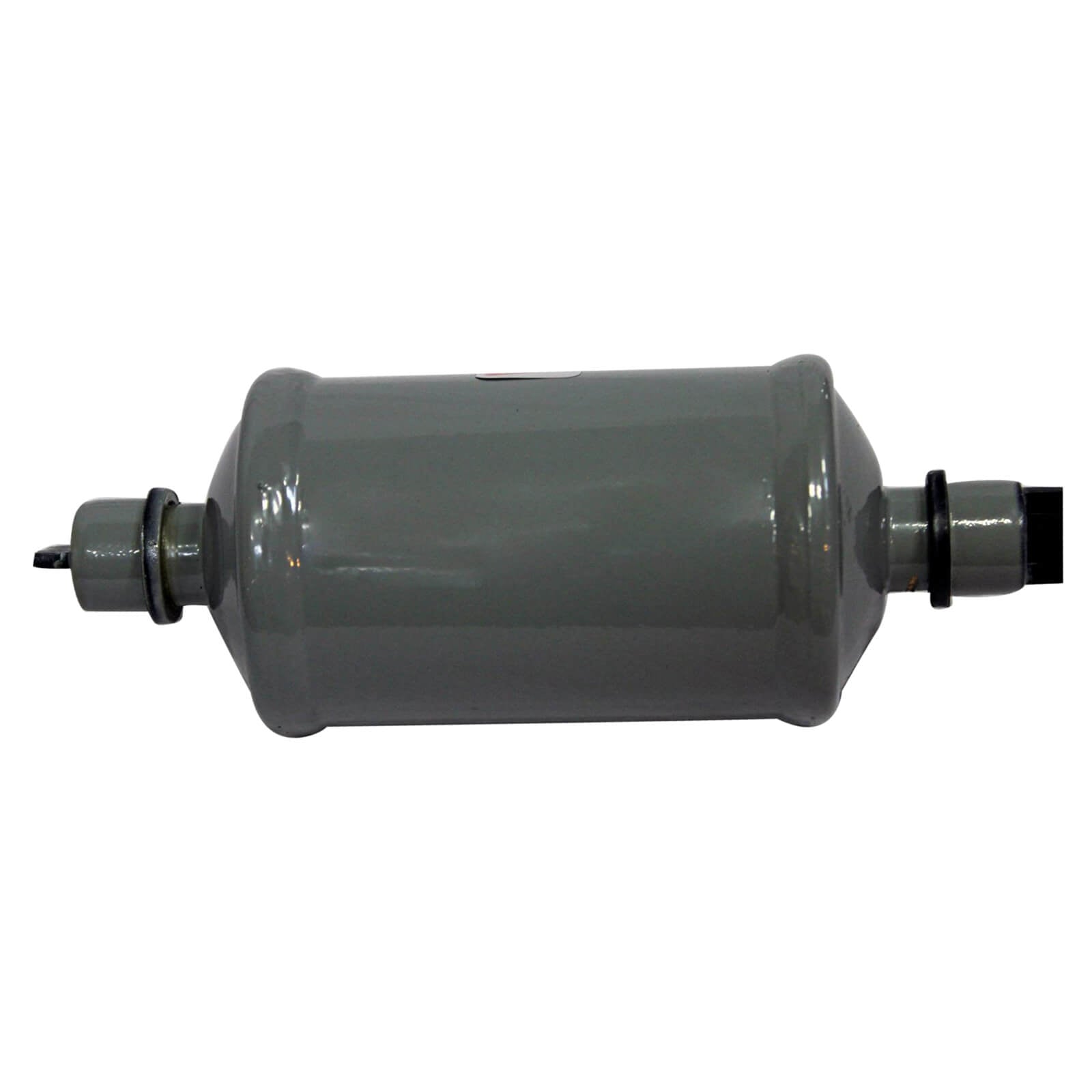

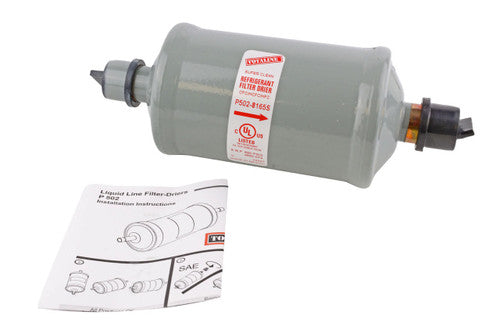

Carrier P502-8165S 165S 5/8 inches ODF Liquid Line Filter Drier

Product Description

The CARRIER P502-8165S Totaline Super Clean SC-Plus Liquid Line Filter-Driers protect the refrigerant system from liquid and solid contaminants. These filter driers incorporate a specially-blended desiccant for maximum moisture and acid removal, and feature full flow fittings for low pressure drop. Designed for liquid line applications with a 5/8" ODF fitting size.

• Compacted bead filter-drier
• Corrosion-resistant finish
• Rugged, shock-resistant steel shells

Product Highlights

Protects refrigerant systems from contaminants with superior filtration. UL listed and CSA certified for safety and reliability.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: P502-8165S
• Country of Origin: Mexico

Technical Specifications

• Application: Liquid Line
• Fitting Size: 5/8"
• Connection Type: ODF
• Manufacturer: Carrier HVAC
• Manufacturer #: P502-8165S
• Parts Town #: CRRP502-8165S
• Units: Each
• Length: 1 in / 2.54 cm
• Width: 1 in / 2.54 cm
• Height: 1 in / 2.54 cm
• Cutout Length: 5.3"
• Filter Direr Overall Length: 6.55"
• Line Type: Liquid
• Max Working Pressure: 680 PSIG
• Nominal Connection Size: 5/8"
• Refrigerant: CFC, HCFC, HFC
• Solder Sprocket Depth: .63"
• Type: Compacted Bead
• Cubic Inches: 16
• Alternate Part #: CAR-P502-8165S
