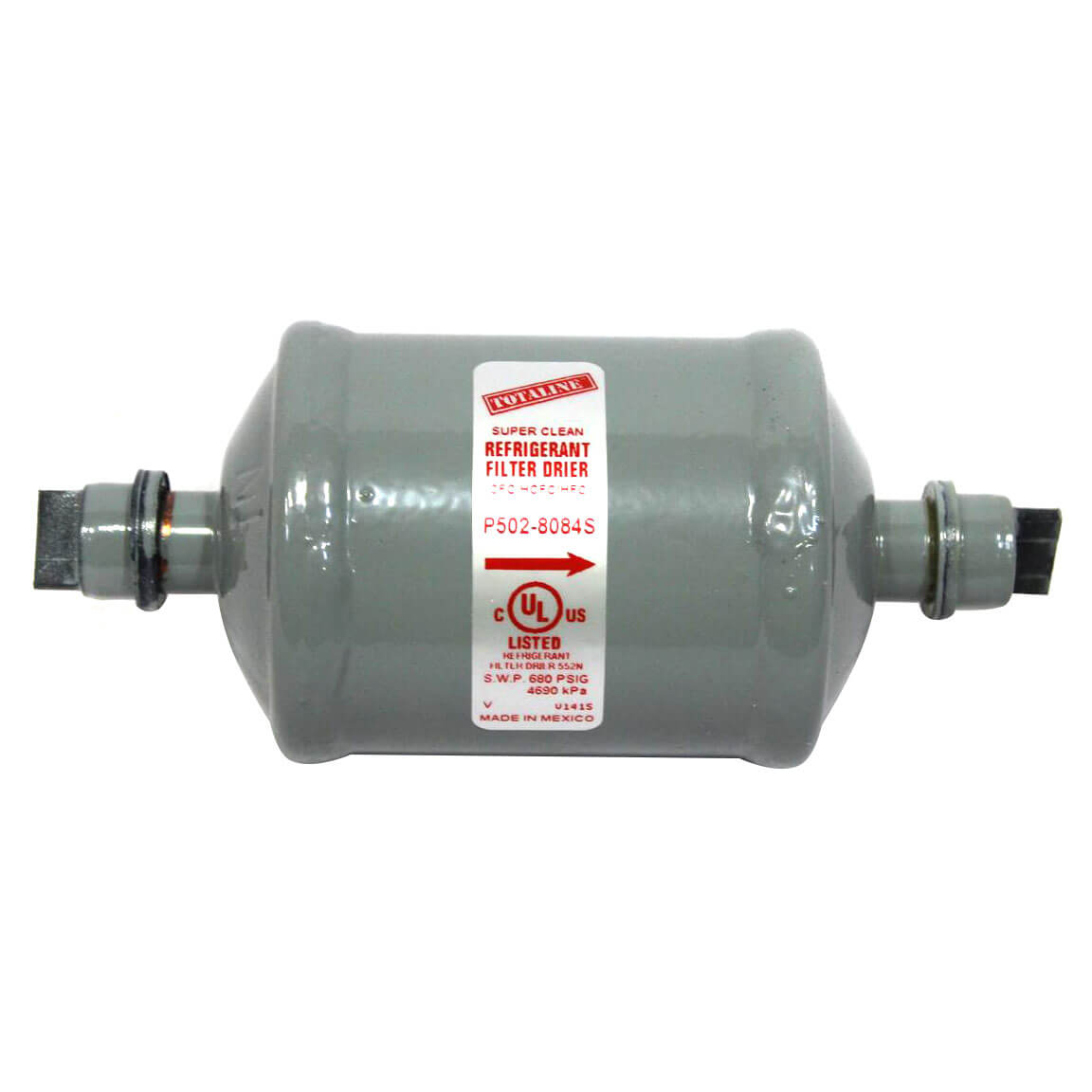

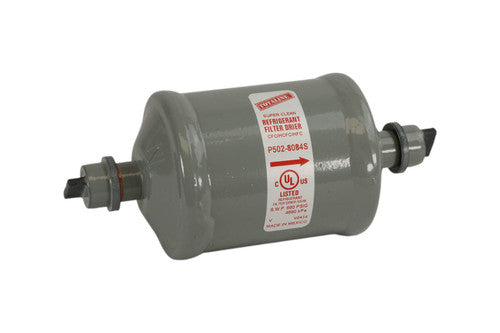

Carrier P502-8084S liquid line filter drier 1/2 inches ODF 03-0175

Product Description

The CARRIER P502-8084S liquid line filter drier features a compacted bead design with a fine 20 Micron outlet pad for maximum filtration. It offers universal replacement for CFC, HCFC, and HFC refrigerants, prioritizing filtration for effective use of the desiccant's surface area. It includes solid copper fittings for easy installation, a desiccant blend of 75% molecular sieve and 25% activated alumina, and boasts high moisture and acid capacity.

• Compacted bead design with 20 Micron outlet pad for maximum filtration.
• Universal replacement for CFC, HCFC, and HFC refrigerants.
• Desiccant blend of 75% molecular sieve and 25% activated alumina for high moisture and acid capacity.

Product Highlights

Ensures clean refrigerant and removes moisture from sealed systems, featuring solid copper fittings for easy installation.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: P502-8084S
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Carrier Corporation
• Brand: Carrier
• MPN: P502-8084S
• Hazardous Material: No
• EPA Certification Required: No
• Inlet Connection Size: 1/2" OD
• Outlet Connection Size: 1/2" OD
• Type: Liquid Line Uni-Flo
• Compatible Models: PA1HEA090000AAAA, PA1HEA090000ABAA, PA1HPA090000AAAA, PA1HPA090000ABAA, PA1SEA090000AAAA, PA1SPA090000AAAA/SERIAL-1801G
• Country of Origin: Mexico
• Compatible Refrigerants: R-134A, R-404A, R-507A
• Inlet Connection Type: Sweat
• Outlet Connection Type: Sweat
• Cubic Inch Size: 8
• Maximum Pressure: 680 PSI
• Replaces Part Numbers: 03-0175, 431-084S, 431084S, KH43LE104, KH45LE108, 54871D3, KH45LD117, P501-8017, P502-8084SH
• Other Part Numbers: FILTER DRIER, U2414
• Product Type: Air Conditioner, Packaged Unit/RTU, Heat Pump, Central Air Conditioner
• Compatible Brands: Bryant, Carrier, Payne
