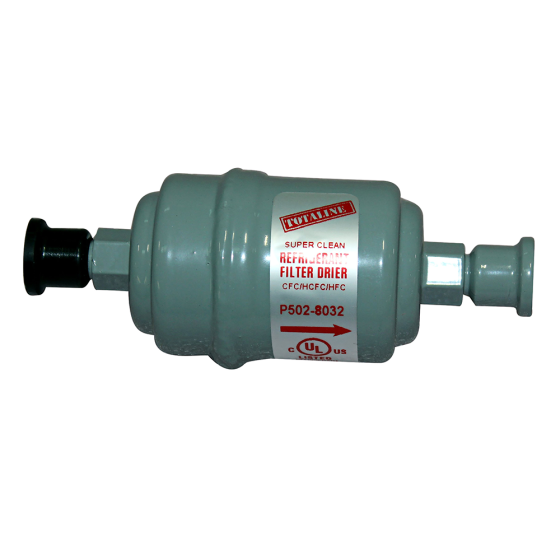

CARRIER P502-8032S Filter Drier

Product Description

The CARRIER P502-8032S is designed for refrigeration systems. This filter drier aids in removing moisture and acid. It has a compact bead filter with a 20-micron outlet pad ensuring optimal filtration. The desiccant blend includes seventy-five percent molecular sieve and twenty-five percent activated alumina. Solid copper connections are provided for straightforward installation. This unit is compatible with various refrigerants such as CFC, HCFC, and HFC.

• Features a 20-micron outlet pad for filtration.
• Contains a desiccant blend of molecular sieve and activated alumina.
• Compatible with CFC, HCFC, and HFC refrigerants.

Product Highlights

The CARRIER P502-8032S is ideal for maintaining refrigeration efficiency.

Product Information

Standard Information

• Country of Origin: Mexico

Technical Specifications

• Connection Inlet Size: 1/4 SAE Male Flare
• Connection Outlet Size: 1/4 SAE Male Flare
• Desiccant Volume: 3 cubic inches
• Filtration: 20 microns
• Maximum Working Pressure: 680 psig
• Desiccant Blend: 75% molecular sieve and 25% activated alumina
• Operating Weight: 0.25 lbs
• Exterior Dimensions (D): 4.75 inches
• Exterior Dimensions (W): 1.75 inches
• Exterior Dimensions (H): 1.75 inches
