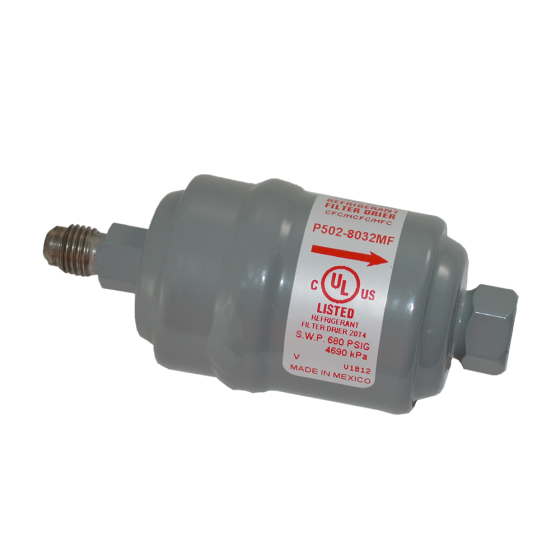

CARRIER P502-8032MF Filter Drier - 1/4 in Flare

Product Description

The CARRIER P502-8032MF filter drier is suited for liquid line applications. It uses a molecular sieve and activated alumina core to effectively filter contaminants down to twenty microns. The construction includes a steel shell with copper male SAE connections. It operates with CFC, HCFC, and HFC refrigerants and has a nominal connection size of one-fourth inch. The unit withstands a maximum pressure of six hundred eighty PSI.

• Removes solid particles and moisture to enhance system reliability.
• Helps prevent moisture-related corrosion and ice buildup.
• Designed for easy installation and maintenance.

Product Highlights

This filter drier is UL listed and recognized, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Carrier
• MPN: P502-8032MF

Technical Specifications

• Shipping Length: 1.9 inches
• Shipping Width: 5.3 inches
• Shipping Height: 2.05 inches
• Shipping Weight: 0.38 pounds
• Material: Copper connections
• Type: Liquid line
• Weight: 0.48 pounds
• Length: 3.92 inches
• Core Material: Molecular sieve, activated alumina
• Max Working Pressure: 680 PSI
• Filtration: 20 microns
• Nominal Connection Size: 1/4 inches
• Height: 1.75 inches
• Refrigerant Compatibility: CFC, HCFC, HFC
• Shell Material: Steel
• UL Listed: True
• UL Recognized: True
• Width: 1.75 inches
• Country of Origin: US
