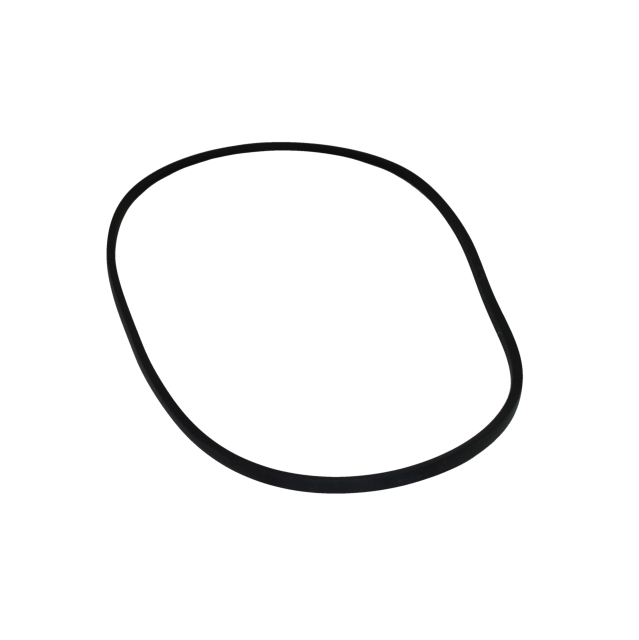

Carrier P463-A68 a Section V-belt 70 in Rubber

Product Description

The CARRIER P463-A68 is an A section V-belt designed for power transmission in HVAC and mechanical drive applications. It features a 0.5-inch top width and a 70-inch outside length, with a cross section height of 0.31 inches. Constructed from rubber with a polyester cord reinforcement and canvas cover, this belt delivers reliable load transfer in belt-driven blower and fan assemblies. HVAC technicians and mechanical service professionals install this belt as part of routine preventive maintenance or emergency drive replacement. The rubber and polyester construction resists stretching and wear under continuous cycling loads.

This V-belt is suited for residential and light commercial HVAC equipment that uses belt-driven blower systems. A section belts are among the most common drive belt profiles in forced-air heating and cooling equipment, making the P463-A68 a practical replacement choice for standard single or multiple-belt drive configurations. Technicians servicing air handlers, furnace blower sections, and similar motor-to-blower drive setups will find this belt appropriate for standard A section pulley grooves.

Key Features

• A section profile with 0.5-inch top width fits standard A section sheaves and pulleys
• 70-inch outside length for longer center-distance drive configurations
• Rubber construction with polyester cord reinforcement resists elongation under load
• Canvas cover protects belt body and extends service life in dusty mechanical environments
• Lightweight at 0.439 pounds for easy handling during belt replacement

Compatibility

Designed as an OEM-style replacement A section V-belt for belt-driven blower and fan drive assemblies in residential and commercial HVAC equipment using standard A section grooved sheaves.

Installation Notes

A licensed HVAC technician or qualified mechanical service professional should install this belt. Disconnect and lock out electrical power to the unit before removing the existing belt or accessing the drive assembly. Verify pulley alignment and check sheave condition for wear before installing the new belt. Do not force the belt over sheave flanges with tools; adjust center distance to allow proper seating, then tension according to drive system requirements.

Technical Specifications

• Belt Section: A
• Top Width: 0.5 inches
• Outside Length: 70 inches
• Cross Section Height: 0.31 inches
• Thickness: 0.31 inches
• Material: Rubber, Polyester Cord, Canvas Cover
• Belt Type: V-Belt
• Weight: 0.439 pounds

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: P463-A68
