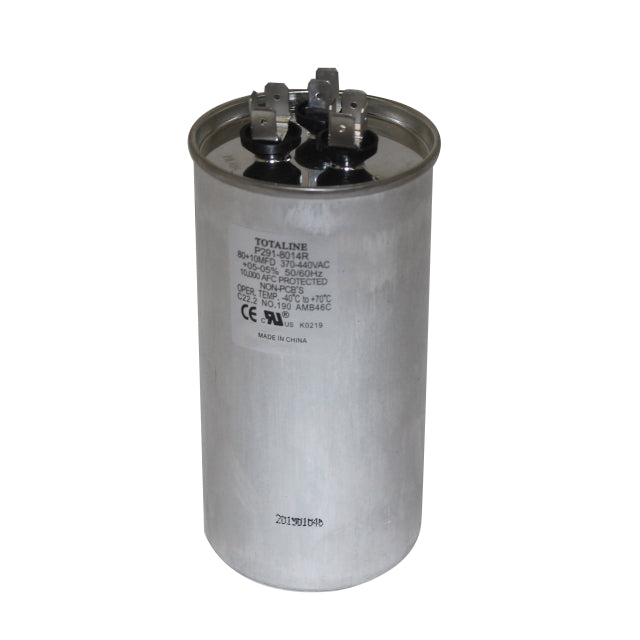

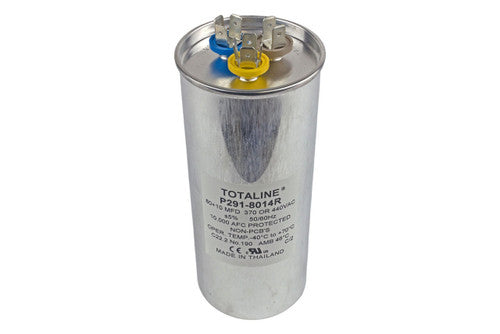

CARRIER P291-8014R - 80/10 uF 440V Round Run Capacitor

Product Description

The CARRIER P291-8014R is a round run capacitor designed for HVAC systems. This unit has a capacitance of eighty/ten microfarads and operates at a voltage rating of three hundred seventy to four hundred forty volts. It suits both fifty and sixty Hertz electrical systems.

• Capacitance: 80/10 microfarads
• Voltage Rating: 370/440 volts
• Operating Temperature: -40 to 70 degrees Celsius

Product Highlights

This capacitor is built with a polypropylene film enclosed in an aluminum case, filled with mineral oil. It performs reliably in a temperature range from negative forty to seventy degrees Celsius. The dimensions of this capacitor are six inches in height with an outer diameter of two and a half inches. The unit features male quick connect terminals for easy installation.

Product Information

Standard Information

• Brand: CARRIER
• Type: Round

Technical Specifications

• Voltage: 370/440 volts
• Hertz: 50/60
• MFD: 80+10
• Height: 6 inches
• Outer Diameter: 2.5 inches
• Operating Temperature: -40 to 70 degrees Celsius
• Terminal Type: Male Quick Connect
• Material: Polypropylene and Aluminum
• UL Recognized: Yes
