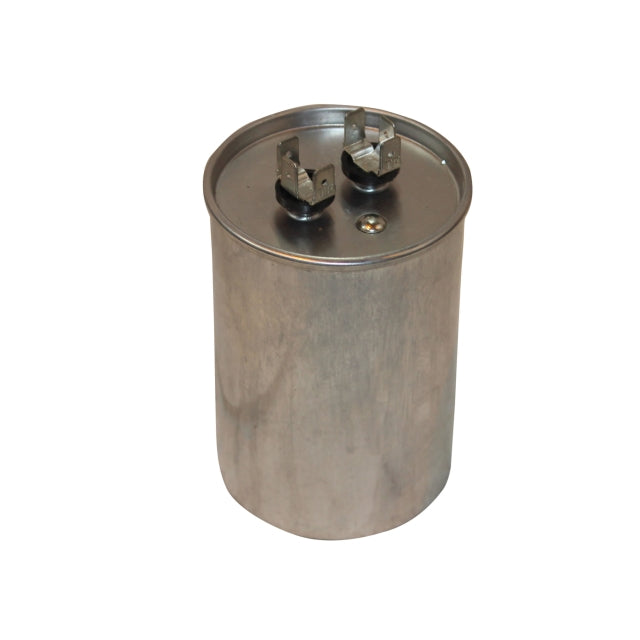

CARRIER P291-5004R 50uF 440V Run Capacitor

Product Description

The CARRIER P291-5004R is a single run capacitor for electrical applications. This component features a capacitance of fifty microfarads and operates at a voltage of four hundred forty volts. The capacitor uses a polypropylene film and comes with an aluminum case, which includes mineral oil as an additive. It functions effectively within a temperature range from negative forty to seventy degrees Celsius. This unit is equipped with male quick-connect terminals. The dimensions include a can height of five point nine inches and a can diameter of two point five inches. It is designed for systems operating at a frequency of fifty or sixty hertz. This product is UL Recognized.

• Capacitance: 50 µF
• Voltage Rating: 440V
• Operating Frequency: 50/60 Hz

Product Highlights

Reliable run capacitor for HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Type: Run Capacitor

Technical Specifications

• Voltage: 440V
• MFD: 50
• Can Height: 5.9 inches
• Shape: Oval
• Terminal Type: Male Quick Connect
• Can Diameter: 2.5 inches
• Temperature Range: -40 to 70 degrees Celsius
• Weight: 0.639 lb
