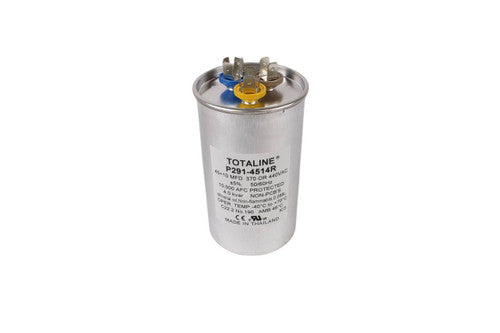

CARRIER P291-4514R 45/10 uF 440 VAC Dual Run Capacitor

Product Description

The CARRIER P291-4514R is a dual run capacitor suitable for motor run applications with permanent split capacitor motors. It operates within a range of 50/60 Hz. This capacitor provides a capacitance of forty-five plus ten microfarads and is rated for three hundred seventy to four hundred forty volts AC. Designed with a polypropylene film in an aluminum case, it contains mineral oil for optimal performance.

• Capacitor is compatible with 50/60 Hz systems.
• Includes male quick connect terminals for simple installation.
• Temperature operation range is from negative forty to seventy degrees Fahrenheit.

Product Highlights

The CARRIER P291-4514R is essential for many HVAC systems, ensuring efficient operation and reliability.

Product Information

Standard Information

• Type: Dual Run Capacitor
• Brand: CARRIER

Technical Specifications

• Capacitance: 45+10 Farad
• Voltage: 370/440 VAC
• Temperature Range: -40 to 70 degrees Fahrenheit
• Can Diameter: 2.5 x 4.37 inches
• Maximum Height: 4.92 inches (including terminal length)
• Terminal Type: Male quick connect
• Shipping Weight: 0.56 pounds
• Shipping Dimensions: 5.5 x 2.75 x 2.75 inches
