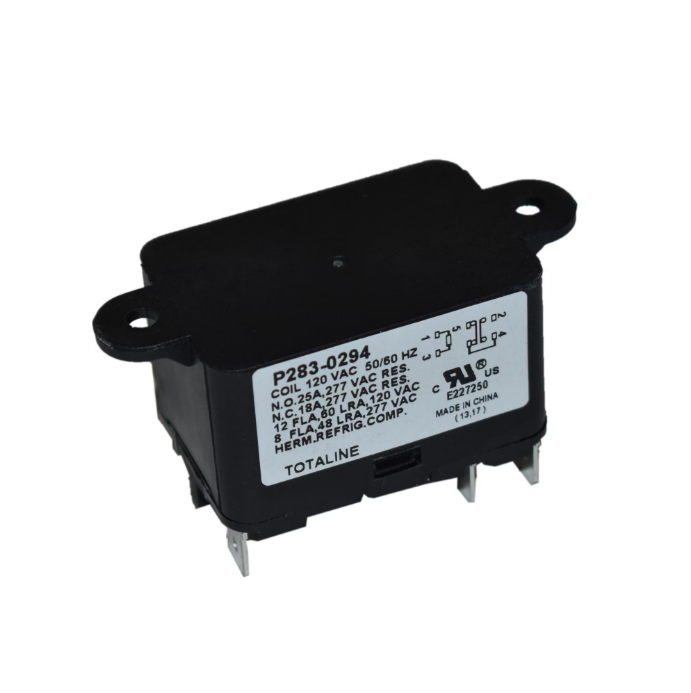

CARRIER P283-0294 Fan Relay

Product Description

The CARRIER P283-0294 fan relay is essential for switching applications in HVAC systems. It is suitable for various uses including appliances and general-purpose switching needs. This relay is built with UL-recognized Class B insulating material. It operates effectively within a temperature range of negative forty degrees Fahrenheit to one hundred fifty degrees Fahrenheit. The control voltage of this relay is one hundred twenty VAC, managing an amperage range of eighteen to twenty-five.

• Switching capabilities for HVAC systems and general applications.
• Constructed with durable UL-recognized materials.
• Temperature operation range of -40°F to 150°F.

Product Highlights

This product offers reliable control for fans in various applications, ensuring efficient operation in both heating and cooling systems.

Product Information

Standard Information

• Item Number: P283-0294
• Brand: CARRIER

Technical Specifications

• Control Voltage: 120 VAC
• Amps: 18-25
• Temperature Range: -40°F to 150°F
• Dimensions: 1.1 x 2 x 0.5 inches
• Weight: 0.1 lbs
• Approvals: UL Listed, CSA Listed
• Relay Type: Fan
• Country of Origin: CHN
